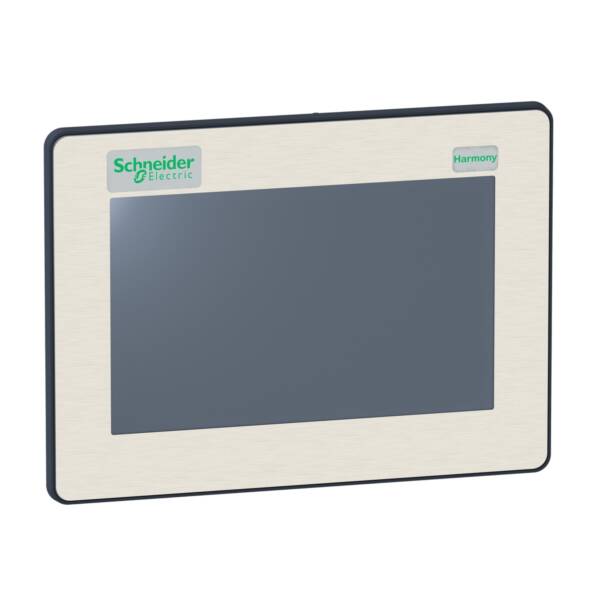

"This product is part of the Harmony GTUX range, an offer of eXtreme outdoor HMI panels." "These eXtreme outdoor HMI panels are a high-performance range of HMIs that are ideal for harsh outdoor environments." "It features a 7" LCD single-touch analog resistive screen with 800 x 480 pixels resolution." "It offers atmospheric resistance with partial conformal coating." "It can operate between temperature range of -30 to 65 °C." "This product works at a power consumption of 29W and a rated voltage from 12V to 24V DC." "Its dimensions are 203.6mm (width) x 148.6mm (height) x 37mm (depth) and weighs 1.3 kg." "It is compatible with HMIG3X Box model." "It is CE certified and conforms to UL 61010, UL 121201, CSA C22.2 No 213, CSA C22.2 No 61010-1, IEC 61132-2 standards." "Harmony GTUX provides powerful visualization and control in extreme environment fully integrated into EcoStruxure Machine Expert software."

Brand

Schneider Electric

Range

Harmony GTUX

Part No

HMIDT35X

Weight (kg)

1.50 kg

Type

Harmony GTUX

With message indication

FALSE

Supporting protocol for SERCOS

FALSE

With numeric keyboard

FALSE

With alpha numeric keyboard

FALSE

Degree of protection (NEMA), front side

Other

Radio standard GPRS

FALSE

With message system (incl. buffer and confirmation)

FALSE

Process value representation (output) possible

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

Type of display

LCD

With printer output

FALSE

Process default value (input) possible

FALSE

With recipes

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Degree of protection (IP), front side

IP66

Radio standard UMTS

FALSE

Additional software components, loadable

FALSE

Touch technology

Resistive touch

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

With SW interfaces

FALSE

Operation temperature

-30…65 °C

Screen diagonal

7

Built-in depth

37

Supporting protocol for SafetyBUS p

FALSE

Voltage type of supply voltage

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Supporting protocol for TCP/IP

FALSE

Number of pixels, horizontal

800

Supporting protocol for KNX

FALSE

With colour display

TRUE

Supporting protocol for CAN

FALSE

Number of colours of the display

262144

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Rail mounting possible

FALSE

Supporting protocol for DeviceNet

FALSE

Suitable for safety functions

FALSE

Width of the front

203.6

Supporting protocol for MODBUS

FALSE

Supporting protocol for Data-Highway

FALSE

Height of the front

148.6

Supply voltage DC

12…24 V

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Number of pixels, vertical

480
