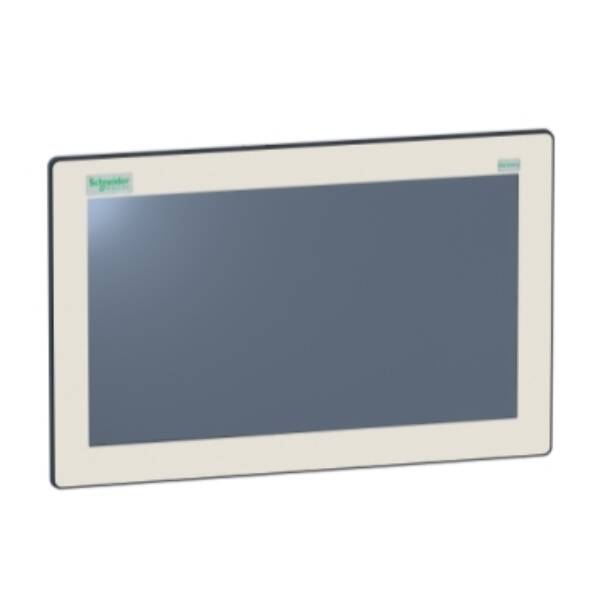

Harmony GTUX Series eXtreme Display 15.0-inch Wide, Outdoor use, Rugged, Coated - Schneider Electric - HMIDT75X

Harmony GTUX Series eXtreme Display 15.0-inch Wide, Outdoor use, Rugged, Coated - Schneider Electric - HMIDT75X

HMIDT75X

Harmony GTUX Series eXtreme Display 15.0-inch Wide, Outdoor use, Rugged, Coated - Schneider Electric - HMIDT75X

Automation

~~List Price £4,261.59 +VAT~~

Our Price £3,622.35 +VAT

SAVE 16% OFF List Price

Estimated delivery between 7-10 working days

"This product is part of the Harmony GTUX range, an offer of eXtreme outdoor HMI panels." "These eXtreme outdoor HMI panels are a high-performance range of HMIs that are ideal for harsh outdoor environments." "It features a 15.6" LCD single-touch analog resistive screen with 1366 x 768 pixels resolution." "It offers atmospheric resistance with partial conformal coating." "It can operate between temperature range of -20 to 60 °C." "This product works at a power consumption of 48W and a rated voltage from 12V to 24V DC." "Its dimensions are 408mm (width) x 264mm (height) x 68mm (depth) and weighs 4.8 kg." "It is compatible with HMIG3X Box model." "It is CE certified and conforms to UL 61010, UL 121201, CSA C22.2 No 213, CSA C22.2 No 61010-1, IEC 61132-2 standards." "Harmony GTUX provides powerful visualization and control in extreme environment fully integrated into EcoStruxure Machine Expert software."

Brand: Schneider Electric
Range: Harmony GTUX
Part No: HMIDT75X
Weight (kg): 6.64 kg
Type: Harmony GTUX
With message indication: FALSE
Supporting protocol for SERCOS: FALSE
With numeric keyboard: FALSE
With alpha numeric keyboard: FALSE
Degree of protection (NEMA), front side: Other
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): FALSE
Process value representation (output) possible: FALSE
Supporting protocol for INTERBUS-Safety: FALSE
Type of display: LCD
With printer output: FALSE
Process default value (input) possible: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
With recipes: FALSE
Degree of protection (IP), front side: IP66
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Additional software components, loadable: FALSE
Supporting protocol for DeviceNet Safety: FALSE
Touch technology: Resistive touch
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: FALSE
Operation temperature: -20…60 °C
Screen diagonal: 15
Built-in depth: 68
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: AC/DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Supply voltage AC 50 Hz: 0 V
Supporting protocol for TCP/IP: FALSE
Supply voltage AC 60 Hz: 0 V
Supporting protocol for KNX: FALSE
Number of pixels, horizontal: 1366
With colour display: TRUE
Supporting protocol for CAN: FALSE
Number of colours of the display: 262144
IO link master: FALSE
Supporting protocol for INTERBUS: FALSE
Rail mounting possible: FALSE
Supporting protocol for DeviceNet: FALSE
Width of the front: 408
Supporting protocol for MODBUS: FALSE
Suitable for safety functions: FALSE
Supporting protocol for Data-Highway: FALSE
Height of the front: 264
Supply voltage DC: 12…24 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Number of pixels, vertical: 768

Datasheet for HMIDT75X - Harmony GTUX Series eXtreme Display 15.0-inch Wide, Outdoor use, Rugged, Coated - Schneider Electric - HMIDT75X

Download
