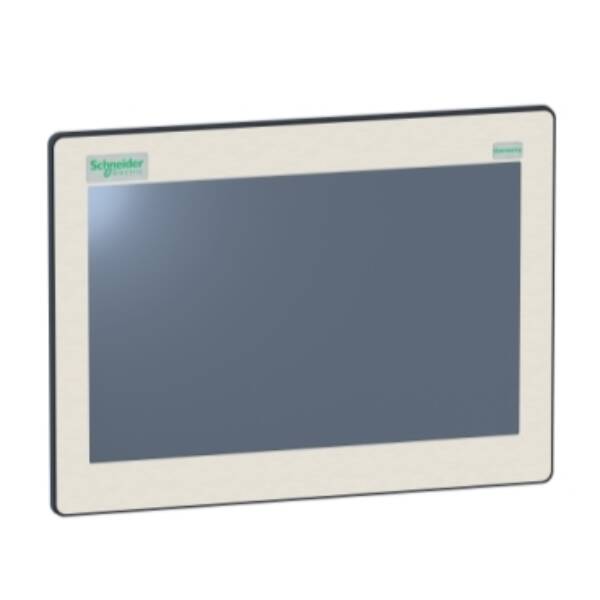

Harmony GTUX Series eXtreme Display 12.0-inch Wide, Outdoor use, Rugged, Coated - Schneider Electric - HMIDT65X

Harmony GTUX Series eXtreme Display 12.0-inch Wide, Outdoor use, Rugged, Coated - Schneider Electric - HMIDT65X

HMIDT65X

Harmony GTUX Series eXtreme Display 12.0-inch Wide, Outdoor use, Rugged, Coated - Schneider Electric - HMIDT65X

Automation

~~List Price £2,502.22 +VAT~~

Our Price £2,126.89 +VAT

SAVE 15% OFF List Price

Estimated delivery between 7-10 working days

"This product is part of the Harmony GTUX range, an offer of eXtreme outdoor HMI panels." "These eXtreme outdoor HMI panels are a high-performance range of HMIs that are ideal for harsh outdoor environments." "It features a 12.1" LCD single-touch analog resistive screen with 1280 x 800 pixels resolution." "It offers atmospheric resistance with partial conformal coating." "It can operate between temperature range of -30 to 70 °C." "This product works at a power consumption of 37W and a rated voltage from 12V to 24V DC." "Its dimensions are 308mm (width) x 230mm (height) x 68mm (depth) and weighs 3.2 kg." "It is compatible with HMIG3X Box model." "It is CE certified and conforms to UL 61010, UL 121201, CSA C22.2 No 213, CSA C22.2 No 61010-1, IEC 61132-2 standards." "Harmony GTUX provides powerful visualization and control in extreme environment fully integrated into EcoStruxure Machine Expert software."

Brand: Schneider Electric
Range: Harmony GTUX
Part No: HMIDT65X
Weight (kg): 4.61 kg
Type: Harmony GTUX
With message indication: FALSE
Supporting protocol for SERCOS: FALSE
With numeric keyboard: FALSE
With alpha numeric keyboard: FALSE
Degree of protection (NEMA), front side: Other
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): FALSE
Process value representation (output) possible: FALSE
Supporting protocol for INTERBUS-Safety: FALSE
Type of display: LCD
With printer output: FALSE
Process default value (input) possible: FALSE
With recipes: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Radio standard GSM: FALSE
Degree of protection (IP), front side: IP66
Radio standard UMTS: FALSE
Additional software components, loadable: FALSE
Touch technology: Resistive touch
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: FALSE
Operation temperature: -30…70 °C
Screen diagonal: 12
Built-in depth: 68
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Supporting protocol for PROFIBUS: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for TCP/IP: FALSE
Number of pixels, horizontal: 1280
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: FALSE
With colour display: TRUE
IO link master: FALSE
Number of colours of the display: 262144
Supporting protocol for INTERBUS: FALSE
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: FALSE
Suitable for safety functions: FALSE
Width of the front: 308.5
Supporting protocol for MODBUS: FALSE
Supporting protocol for Data-Highway: FALSE
Height of the front: 230.5
Supply voltage DC: 12…24 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Number of pixels, vertical: 800

Datasheet for HMIDT65X - Harmony GTUX Series eXtreme Display 12.0-inch Wide, Outdoor use, Rugged, Coated - Schneider Electric - HMIDT65X

Download
