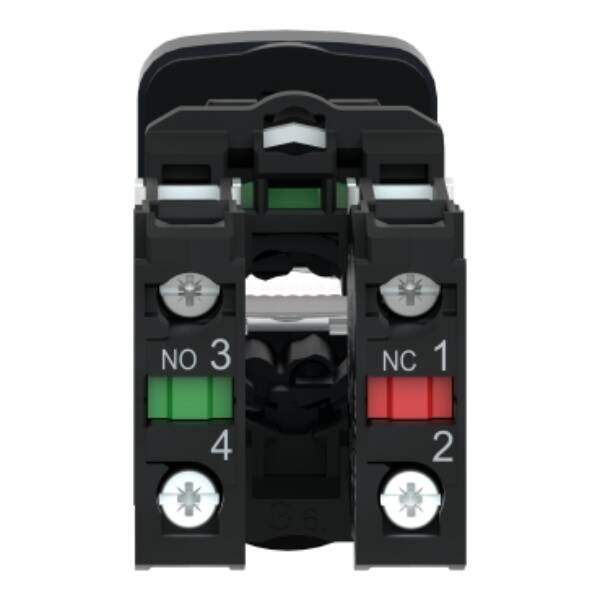

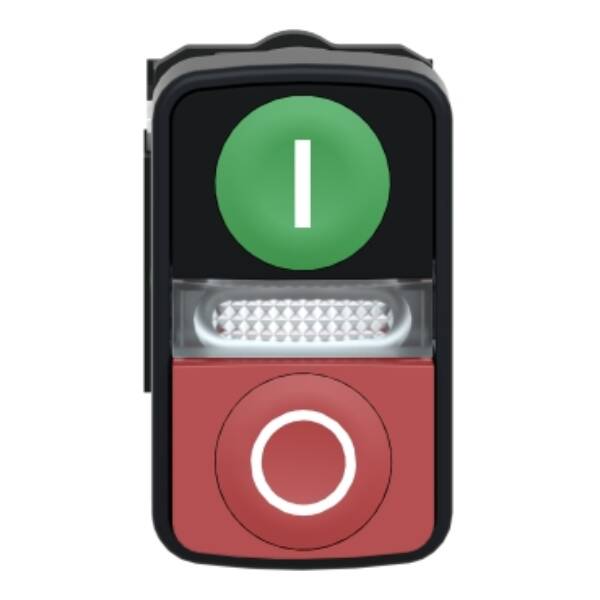

This Harmony XB5, double-headed modular push button has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is marked with "I" and "O" symbols. This double-head button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K and IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Brand

Schneider Electric

Range

Harmony XB5

Part No

XB5AW73731G5

Weight (kg)

0.06 kg

Type

Harmony XB5

Spring-return

TRUE

Colour front ring

Black

Type of electric connection

Screw connection

Material front ring

Plastic

Supply voltage lamp

120

Hole diameter

22.5

Switching function latching

FALSE

Type of button

High

Number of contacts as normally open contact

1

Construction type lens

Rectangular

Colour button

Red/green

With front ring

TRUE

Degree of protection (IP)

IP66

Suitable for illumination

TRUE

Number of command positions

2

Transparent

TRUE

Number of contacts as normally closed contact

1

Degree of protection (NEMA)

4X
