NSYSPF7100
NSYSPF7100

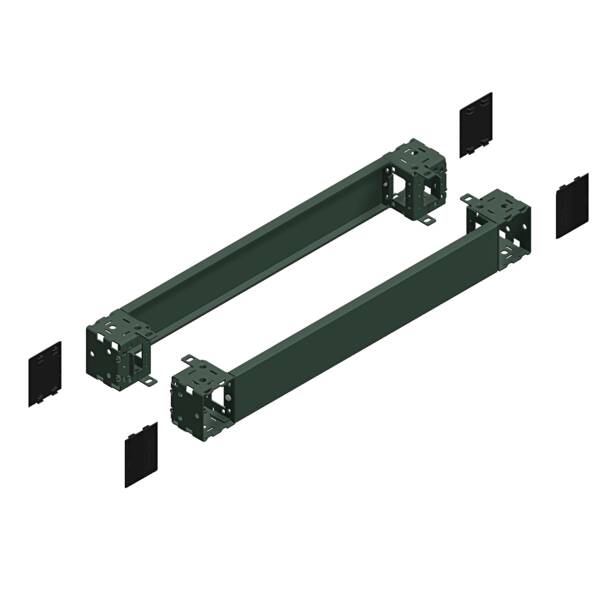

Spacial SF/SM front plinth - 100x700 mm - Schneider Electric - NSYSPF7100
Enclosures
List Price £65.64
+VAT
Our Price £49.23
+VAT
SAVE 26% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
Plain front and back plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal width of 700 mm and its height is 100 mm. The set contains 4 corners with its covers, 1 front panel, 1 rear panel and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .
Brand
Schneider Electric
Range
PanelSeT SF
Part No
NSYSPF7100
Weight (kg)
7.96 kg
Type
Spacial SF
Suitable for enclosure building width
700
Colour
Grey
Width
700
Suitable for cable patch
TRUE
Height
100
Model
Base front/back
Material
Steel
Suitable for outdoor set-up
FALSE
Max. load capacity
1300
Depth
600
Suitable for aeration/de-aeration
FALSE
Datasheet for NSYSPF7100 - "Front & rear plinth, PanelSeT SFN, SF, SM, for electrical enclosure W700mm, plinth H100mm" - Schneider Electric - NSYSPF7100
Download
