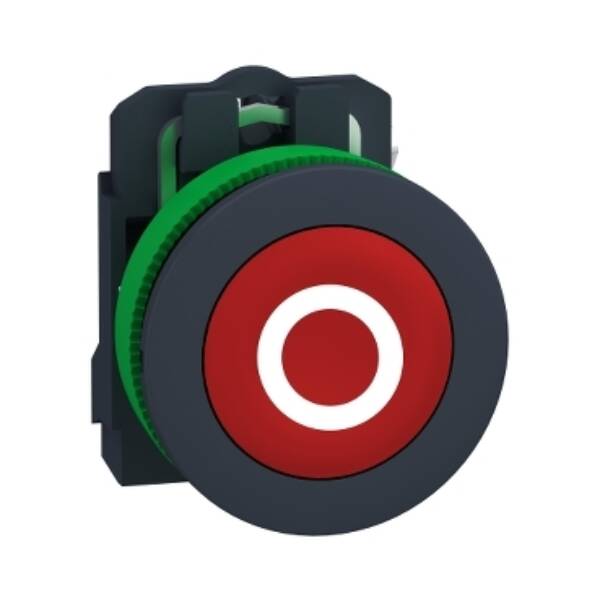

This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has a "O" marking in white. Customized marking option is also available through web customization tool in Schneider Electric website. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and red. The bezel and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.

Brand

Schneider Electric

Range

Harmony XB5

Part No

XB5FA4322

Weight (kg)

0.04 kg

Type

Harmony XB5

Spring-return

TRUE

Colour front ring

Black

Type of electric connection

Screw connection

Material front ring

Plastic

Hole diameter

30.5

Switching function latching

FALSE

Type of button

Flat

Construction type lens

Round

Colour button

Red

With front ring

TRUE

Suitable for illumination

FALSE

Degree of protection (IP)

IP66

Number of command positions

1

Transparent

FALSE

Number of contacts as normally closed contact

1

Degree of protection (NEMA)

4X
