Floor standing enclosure polyester vers.PLA completely sealed 500x750x420 IP65 - Schneider Electric - NSYPLA574G
Floor standing enclosure polyester vers.PLA completely sealed 500x750x420 IP65 - Schneider Electric - NSYPLA574G

NSYPLA574G

Floor standing enclosure polyester vers.PLA completely sealed 500x750x420 IP65 - Schneider Electric - NSYPLA574G

Enclosures

List Price £483.15 +VAT

Our Price £362.36 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days

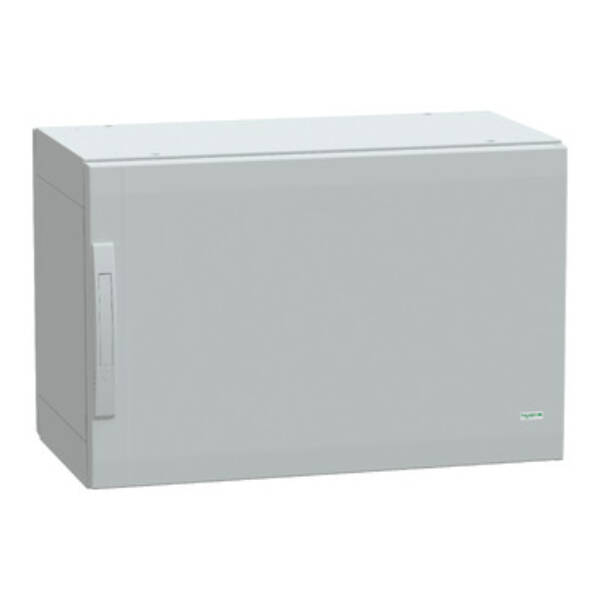

"This PLA version of the Thalassa PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "It has a nominal height of 500mm, width of 750mm, and depth of 420mm" "It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035)" "It consists of two side parts, one plain front door, and one rear panel" "The door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside" "The door is secured with a two-point lock and a 5mm double-bar" "The door and rear panel are also removable for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP65 (IEC 60529), offering complete protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is DNV Marine, Veritas, and UL/cUL listed and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"
Brand
Schneider Electric
Range
PanelSeT PLA
Part No
NSYPLA574G
Weight (kg)
23.67 kg
Type
Thalassa PLA

Datasheet for NSYPLA574G - Floor standing enclosure polyester vers.PLA completely sealed 500x750x420 IP65 - Schneider Electric - NSYPLA574G
