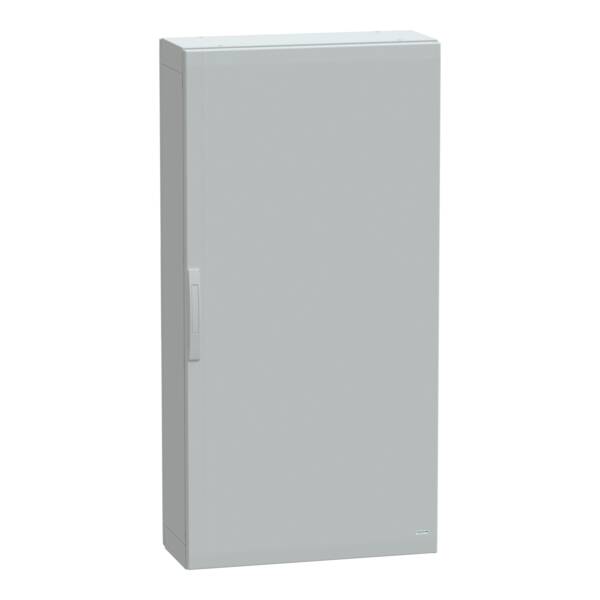

This PLA version of the PanelSeT is a multi-purpose, floor-standing enclosure that is suitable for various applications It features a sealed top and bottom part, assembled with side parts, and has nominal dimensions of 1500mm in height, 750mm in width, and 320mm in depth The enclosure is made of polyester reinforced with fiberglass, providing strength and resistance to harsh environments, including outdoor and industrial settings The enclosure comes in grey (RAL 7035) and is comprised of two side parts, one plain front door, and one rear panel The front door can be opened up to 120° from either the right or left side, and is secured with a four-point lock and a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes The enclosure is certified by DNV Marine, Veritas, and UL/cUL listed, and offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard and has an IK10 rating (IEC 62262), indicating high resistance to impacts It is rated IP65 (IEC 60529), providing complete protection against dust and water Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA1573G

Weight (kg)

39.60 kg

Type

Thalassa PLA

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

FALSE

Suitable for metrical mounting

FALSE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1500

Degree of protection (IP)

IP65

Pitched roof

FALSE

Floor standing wall model

FALSE

Colour

Grey

Width

750

Intermediate mounting

FALSE

Surface finishing

Untreated

Material

Plastic

Number of doors

1

Number of locks

1

Corner model

FALSE

Suitable for outdoor set-up

TRUE

Material quality

Polyester (PET)

Suitable for wall mounting

TRUE

Depth

320

Suitable for wall built-in

FALSE

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

1138

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

13

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the enclosure according to IEC 62208

1697

Max. permissible load of the door(s) according to IEC 62208

324
