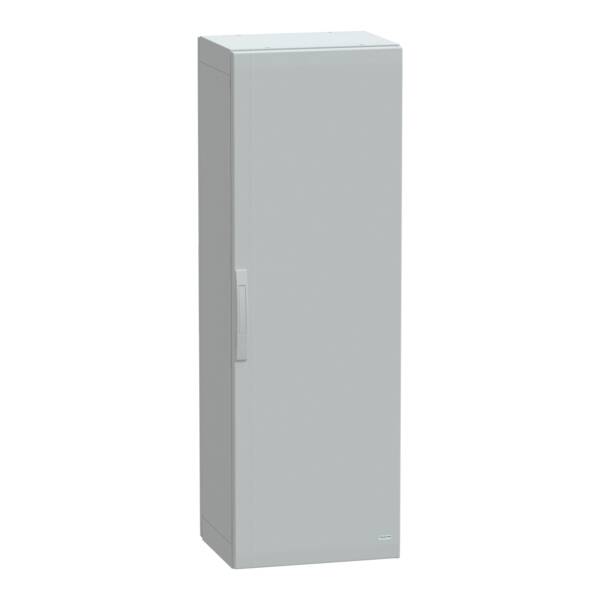

Floor standing enclosure polyester vers.PLA completely sealed 1500x500x420 IP65 - Schneider Electric - NSYPLA1554G
Floor standing enclosure polyester vers.PLA completely sealed 1500x500x420 IP65 - Schneider Electric - NSYPLA1554G

NSYPLA1554G

Floor standing enclosure polyester vers.PLA completely sealed 1500x500x420 IP65 - Schneider Electric - NSYPLA1554G

Enclosures

List Price £747.70 +VAT

Our Price £560.78 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
"This PLA version of the Thalassa range is a multi-purpose, floor-standing enclosure that is suitable for various applications" "The enclosure measures 1500mm in height, 500mm in width, and 420mm in depth, and is made of polyester reinforced with fiberglass" "This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor" "The enclosure is available in grey (RAL 7035) color and comprises one top part, one bottom part, two side parts, one rear panel, and one door" "The door can be opened up to 120° from either the right or left side, providing easy access to the equipment inside" "The door is fitted with a four-point lock and a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes" "The enclosure is certified by DNV Marine, Veritas, and UL/cUL, and offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "It is rated IK10 (IEC 62262), indicating high resistance to impacts, and is rated IP65 (IEC 60529), providing complete protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"
Brand
Schneider Electric
Range
PanelSeT PLA
Part No
NSYPLA1554G
Weight (kg)
39.50 kg
Type
Thalassa PLA

Datasheet for NSYPLA1554G - Floor standing enclosure polyester vers.PLA completely sealed 1500x500x420 IP65 - Schneider Electric - NSYPLA1554G
