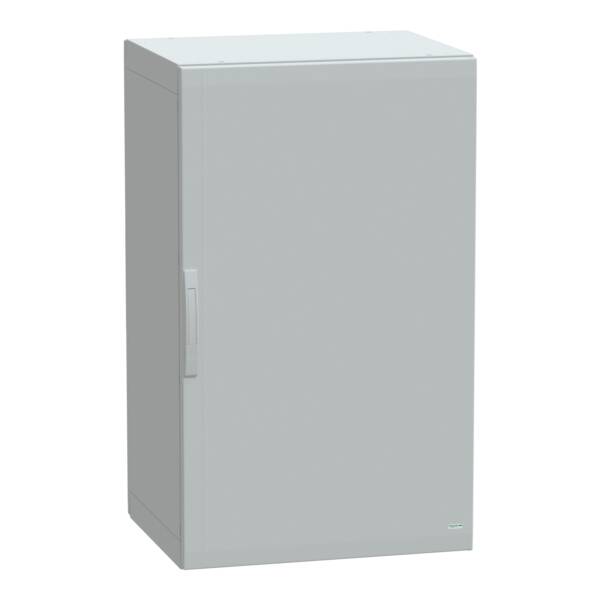

"This PLA is a versatile, floor-standing enclosure that is suitable for various applications" "It comes with a sealed top and bottom, assembled with side parts, and measures 1250mm in height, 750mm in width, and 620mm in depth" "It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035)" "It consists of two side parts, one plain front door, and one rear panel" "The door can be opened up to 120° from either the right or left side, and is equipped with a four-point lock with a 5mm double-bar insert" "The door and rear panel are also removable for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "It is also certified by UL/cUL and DNV Marine and is rated NEMA 3, NEMA 3S, NEMA 2, NEMA 5, NEMA 3R, NEMA 3X, NEMA 12, NEMA 1, and NEMA 13" "The enclosure has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP65 (IEC 60529), offering maximum protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA1276G

Weight (kg)

45.00 kg

Type

Thalassa PLA

With mounting plate

FALSE

With glazed door

FALSE

Wall fastening possible

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Tackable

TRUE

Height

1250

Degree of protection (IP)

IP65

Pitched roof

FALSE

Colour

Grey

Width

750

Surface finishing

Untreated

Number of doors

1

Material

Plastic

Suitable for outdoor set-up

TRUE

Number of locks

1

Material quality

Polyester

Depth

620

Wall build in

FALSE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

13

With backside door

FALSE

Pole fastening

FALSE

Floor installation possible

TRUE
