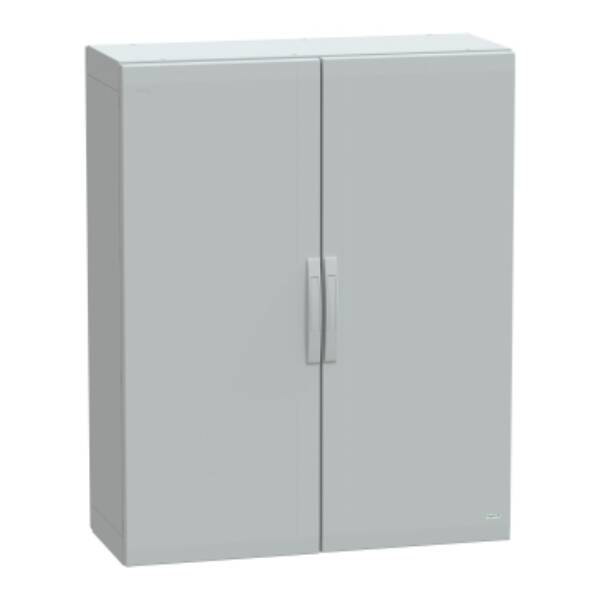

Floor standing enclosure polyester vers.PLA completely sealed 1250x1000x420 IP65 - Schneider Electric - NSYPLA12104G
Floor standing enclosure polyester vers.PLA completely sealed 1250x1000x420 IP65 - Schneider Electric - NSYPLA12104G

NSYPLA12104G

Floor standing enclosure polyester vers.PLA completely sealed 1250x1000x420 IP65 - Schneider Electric - NSYPLA12104G

Enclosures

List Price £1,111.45 +VAT

Our Price £833.59 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This PLA version of the PanelSeT is a versatile, floor-standing enclosure that is suitable for various applications It comes with a sealed top and bottom, assembled with two side parts The enclosure has nominal dimensions of 1250mm in height, 1000mm in width, and 420mm in depth It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings The enclosure is available in grey (RAL 7035) The enclosure consists of two side parts, two plain front doors, two rear panels, and is designed for easy access to the equipment inside The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a 5mm double-bar insert The doors and rear panels are also removable for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard It is certified by DNV Marine, Veritas, and UL/cUL listed The enclosure has an IK10 rating (IEC 62262), indicating high resistance to impacts It is rated IP65 (IEC 60529), offering complete protection against dust and water Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance
Brand
Schneider Electric
Range
PanelSeT PLA
Part No
NSYPLA12104G
Weight (kg)
50.20 kg
Type
Thalassa PLA
Couplable
FALSE
With mounting plate
FALSE
Freestanding
FALSE
With glazed door
FALSE
With cover
FALSE
Suitable for metrical mounting
FALSE
RAL-number
7035
Transparent cover
FALSE
Height
1250
Degree of protection (IP)
IP65
Pitched roof
FALSE
Floor standing wall model
FALSE
Colour
Grey
Width
1000
Intermediate mounting
FALSE
Surface finishing
Untreated
Number of doors
2
Material
Plastic
Number of locks
1
Suitable for outdoor set-up
TRUE
Corner model
FALSE
Suitable for wall mounting
TRUE
Material quality
Polyester (PET)
Depth
420
Suitable for wall built-in
FALSE
Pre-stamping
FALSE
With door
TRUE
Max. permissible load of the mounting plate according to IEC 62208
1304
Mounting plate depth-adjustable
FALSE
Impact strength
IK10
With ventilation door
FALSE
EMC-version
FALSE
Degree of protection (NEMA)
13
With rear door
FALSE
Pole fastening
FALSE
Max. permissible load of the enclosure according to IEC 62208
2069
Max. permissible load of the door(s) according to IEC 62208
353

Datasheet for NSYPLA12104G - Floor standing enclosure polyester vers.PLA completely sealed 1250x1000x420 IP65 - Schneider Electric - NSYPLA12104G
