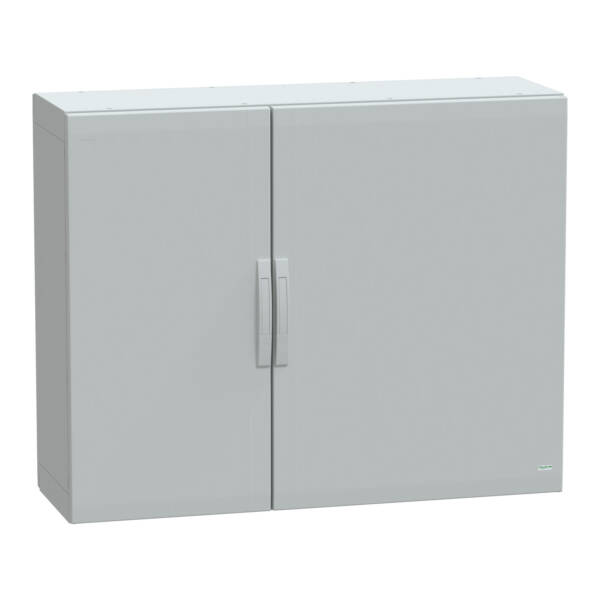

"This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "It has a nominal height of 1000mm, width of 1250mm, and depth of 420mm and is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments" "The enclosure is available in grey (RAL 7035) and consists of two side parts, two plain front doors, and two rear panels" "The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a 5mm double-bar insert" "The doors and rear panels are also removable for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP65 (IEC 60529), offering complete protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL/cUL listed and DNV Marine certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA10124G

Weight (kg)

49.00 kg

Type

Thalassa PLA

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

FALSE

Suitable for metrical mounting

FALSE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1000

Degree of protection (IP)

IP65

Pitched roof

FALSE

Floor standing wall model

FALSE

Colour

Grey

Width

1250

Intermediate mounting

FALSE

Surface finishing

Untreated

Number of doors

2

Material

Plastic

Corner model

FALSE

Suitable for outdoor set-up

TRUE

Number of locks

1

Suitable for wall mounting

TRUE

Material quality

Polyester (PET)

Suitable for wall built-in

FALSE

Depth

420

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

1304

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

13

Pole fastening

FALSE

With rear door

FALSE

Max. permissible load of the enclosure according to IEC 62208

2177

Max. permissible load of the door(s) according to IEC 62208

147
