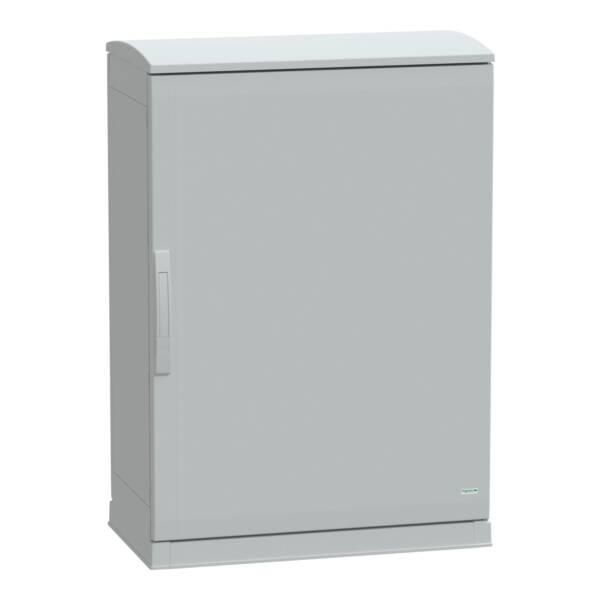

Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000x750x420 IP44 - Schneider Electric - NSYPLAZT1074G
Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000x750x420 IP44 - Schneider Electric - NSYPLAZT1074G

NSYPLAZT1074G

Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000x750x420 IP44 - Schneider Electric - NSYPLAZT1074G

Enclosures

List Price £1,116.58 +VAT

Our Price £837.44 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"This PLAZT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "The enclosure has nominal dimensions of 1000mm in height, 750mm in width, and 420mm in depth and is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, both indoor and outdoor" "It is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, one canopy, and one plinth" "The front door is designed to open up to 180° from either the right or left side, providing easy access to the equipment inside" "The door features a four-point lock with a handle that has a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure" "The enclosure offers robust protection against various hazards, including fire, impacts, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "It is rated IK10 (IEC 62262), indicating high resistance to impacts" "It is also rated IP44 (IEC 60529), providing high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"
Brand
Schneider Electric
Range
PanelSeT PLA
Part No
NSYPLAZT1074G
Weight (kg)
39.96 kg
Type
Thalassa PLA
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
7035
craft\elements\db\ElementQuery
FALSE
Height
1000
Degree of protection (IP)
IP44
craft\elements\db\ElementQuery
FALSE
Colour
Grey
Width
750
craft\elements\db\ElementQuery
Untreated
Number of doors
1
Material
Plastic
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
Polyester
craft\elements\db\ElementQuery
FALSE
Depth
420
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
IK10
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
3
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
TRUE

Datasheet for NSYPLAZT1074G - Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000x750x420 IP44 - Schneider Electric - NSYPLAZT1074G
