Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000x750x320 IP44 - Schneider Electric - NSYPLAZT1073G
Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000x750x320 IP44 - Schneider Electric - NSYPLAZT1073G

NSYPLAZT1073G

Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000x750x320 IP44 - Schneider Electric - NSYPLAZT1073G

Enclosures

List Price £1,070.62 +VAT

Our Price £802.97 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days

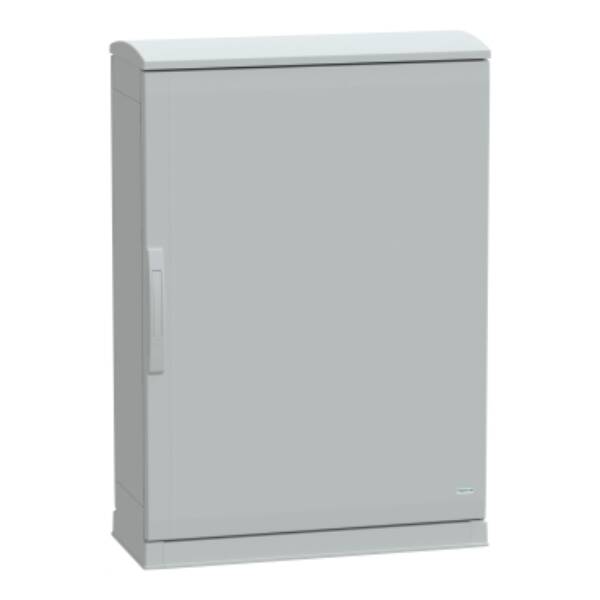

"This PLAZT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications" "The enclosure measures 1000mm in height, 750mm in width, and 320mm in depth, and is made of polyester reinforced with fiberglass" "This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor" "The enclosure is available in grey (RAL 7035) color and comprises two side parts, one plain front door, one rear panel, and one canopy" "The front door is designed to open up to 180° from either the right or left side, providing easy access to the equipment inside" "The door features a four-point lock with a handle that has a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure" "The enclosure can withstand fire up to 960°C, in accordance with the IEC 62208 standard" "It is highly resistant to impacts, with an IK10 rating according to IEC 62262, and provides excellent protection against dust and water, with an IP44 rating as per IEC 60529" "Furthermore, the enclosure has Class II electrical insulation, which prevents electric shocks and allows for the construction of completely insulated solutions" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -35 to 90°C without affecting its performance"
Brand
Schneider Electric
Range
PanelSeT PLA
Part No
NSYPLAZT1073G
Weight (kg)
31.08 kg
Type
Thalassa PLA
