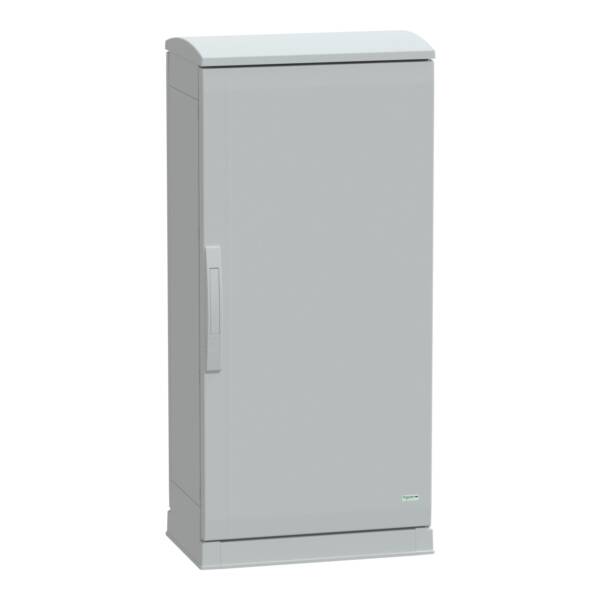

"This PLAZT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "The enclosure has a nominal height of 1000mm, width of 500mm, and depth of 320mm, and is made of polyester reinforced with fiberglass for durability and resistance to harsh environments" "It is available in grey (RAL 7035) and includes two side parts, one plain front door, one rear panel, one canopy, and one plinth" "The reversible door can be opened up to 180° from either the right or left side, and is secured with a four-point lock and 5mm double-bar insert handle" "The door, rear panel, and canopy can be removed for maintenance purposes" "The enclosure offers robust protection against fire, impacts, dust, and water" "It can withstand fire up to 960°C, in accordance with IEC 62208, and has an IK10 rating (IEC 62262) for high impact resistance" "It is rated IP44 (IEC 60529) for protection against dust and water, and has Class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLAZT1053G

Weight (kg)

27.00 kg

Type

Thalassa PLA

With mounting plate

FALSE

With glazed door

FALSE

Wall fastening possible

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Tackable

FALSE

Height

1000

Degree of protection (IP)

IP44

Pitched roof

FALSE

Colour

Grey

Width

500

Surface finishing

Untreated

Material

Plastic

Number of doors

1

Suitable for outdoor set-up

TRUE

Number of locks

1

Material quality

Polyester

Wall build in

FALSE

Depth

320

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

3

With backside door

FALSE

Pole fastening

FALSE

Floor installation possible

TRUE
