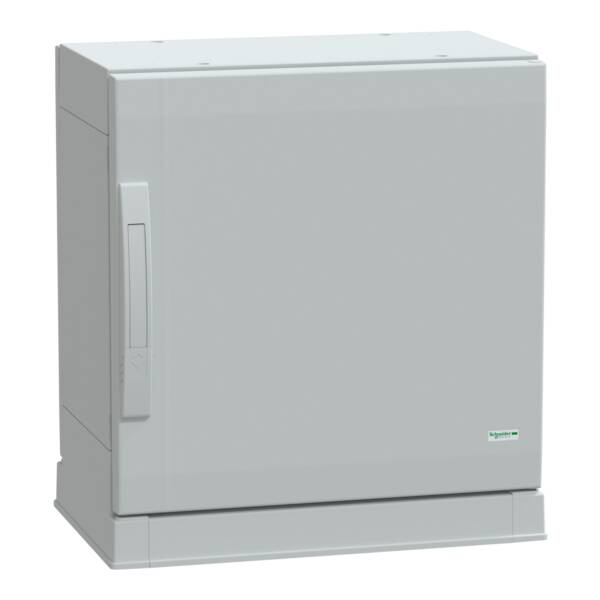

Floor standing encl.polyester vers.PLAZ w/plinth open bottom 500x500x320 IP54 - Schneider Electric - NSYPLAZ553G
Floor standing encl.polyester vers.PLAZ w/plinth open bottom 500x500x320 IP54 - Schneider Electric - NSYPLAZ553G

NSYPLAZ553G

Floor standing encl.polyester vers.PLAZ w/plinth open bottom 500x500x320 IP54 - Schneider Electric - NSYPLAZ553G

Enclosures

List Price £583.76 +VAT

Our Price £437.82 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"This PLAZ version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications" "It comes with a sealed top and an open bottom, assembled with side parts" "The enclosure has nominal dimensions of 500mm in height, 500mm in width, and 320mm in depth" "It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035)" "Consisting of two side parts, one plain front door, one rear panel, and one plinth, the enclosure is designed for easy access to the equipment inside" "The door can be opened from either the right or left side, up to 120°, and features a two-point handle lock with a 5mm double-bar insert" "The door and rear panel are also removable for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP54 (IEC 60529), offering high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"
Brand
Schneider Electric
Range
PanelSeT PLA
Part No
NSYPLAZ553G
Weight (kg)
14.73 kg
Type
Thalassa PLA
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
7035
craft\elements\db\ElementQuery
FALSE
Height
500
Degree of protection (IP)
IP55
craft\elements\db\ElementQuery
FALSE
Colour
Grey
Width
500
craft\elements\db\ElementQuery
Untreated
Material
Plastic
Number of doors
1
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
Polyester
craft\elements\db\ElementQuery
FALSE
Depth
320
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
IK10
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
13
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
TRUE

Datasheet for NSYPLAZ553G - Floor standing encl.polyester vers.PLAZ w/plinth open bottom 500x500x320 IP54 - Schneider Electric - NSYPLAZ553G
