Floor standing encl.polyester vers.PLAZ w/plinth open bottom 1000x750x420 IP54 - Schneider Electric - NSYPLAZ1074G
Floor standing encl.polyester vers.PLAZ w/plinth open bottom 1000x750x420 IP54 - Schneider Electric - NSYPLAZ1074G

NSYPLAZ1074G

Floor standing encl.polyester vers.PLAZ w/plinth open bottom 1000x750x420 IP54 - Schneider Electric - NSYPLAZ1074G

Enclosures

List Price £970.03 +VAT

Our Price £727.52 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days

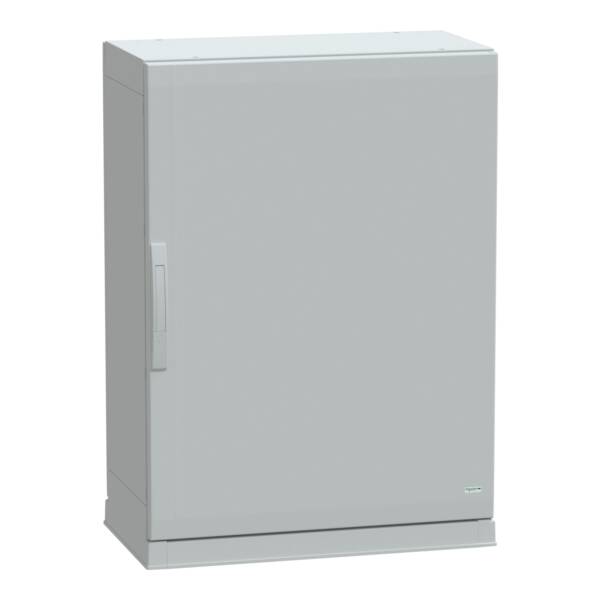

"This PLAZ version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "It has a nominal height of 1000mm, a width of 750mm, and a depth of 420mm" "The enclosure is made of polyester reinforced with fiberglass, providing robust protection against various hazards, including fire, impact, dust, and water" "It comes in a grey (RAL 7035) color and consists of two side parts, one plain front door, one rear panel, and one plinth" "The door can be opened up to 120° from either the right or left side, and features a four-point lock with a handle that has a 5mm double-bar insert" "The door and rear panel can be removed for maintenance purposes" "The enclosure can withstand fire up to 960°C in accordance with the IEC 62208 standard and has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP54 (IEC 60529), offering high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"
Brand
Schneider Electric
Range
PanelSeT PLA
Part No
NSYPLAZ1074G
Weight (kg)
38.23 kg
Type
Thalassa PLA

Datasheet for NSYPLAZ1074G - Floor standing encl.polyester vers.PLAZ w/plinth open bottom 1000x750x420 IP54 - Schneider Electric - NSYPLAZ1074G
