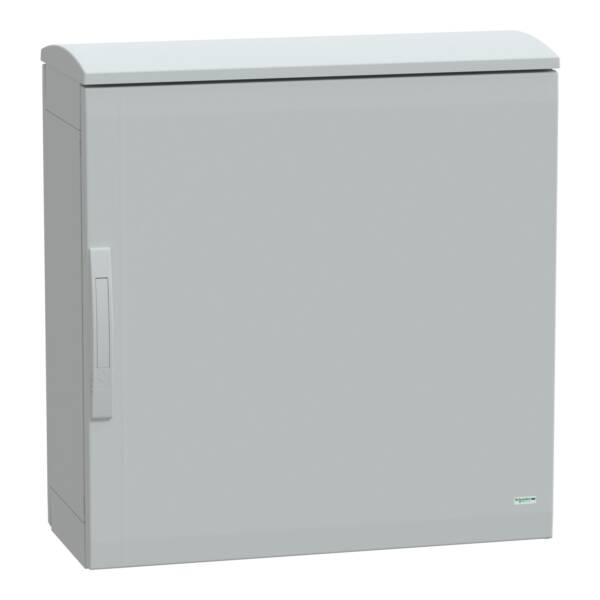

"This PLAT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications" "It measures 750mm in height, 750mm in width, and 320mm in depth, and is made of polyester reinforced with fiberglass" "This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor" "The enclosure is available in grey (RAL 7035) color and consists of two side parts, one plain front door, one rear panel, and one canopy" "The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside" "The door features a two-point handle lock with a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure" "The enclosure can withstand fire up to 960°C, in accordance with the IEC 62208 standard" "It is highly resistant to impacts, with an IK10 rating according to IEC 62262, and provides excellent protection against dust and water, with an IP44 rating as per IEC 60529" "Furthermore, the enclosure has Class II electrical insulation, which prevents electric shocks and allows for the construction of completely insulated solutions" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -35 to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLAT773G

Weight (kg)

24.13 kg

Type

Thalassa PLA

With mounting plate

FALSE

With glazed door

FALSE

Wall fastening possible

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Tackable

FALSE

Height

750

Degree of protection (IP)

IP44

Pitched roof

FALSE

Colour

Grey

Width

750

Surface finishing

Untreated

Number of doors

1

Material

Plastic

Number of locks

1

Suitable for outdoor set-up

TRUE

Material quality

Polyester

Wall build in

FALSE

Depth

320

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

3

With backside door

FALSE

Pole fastening

FALSE

Floor installation possible

TRUE
