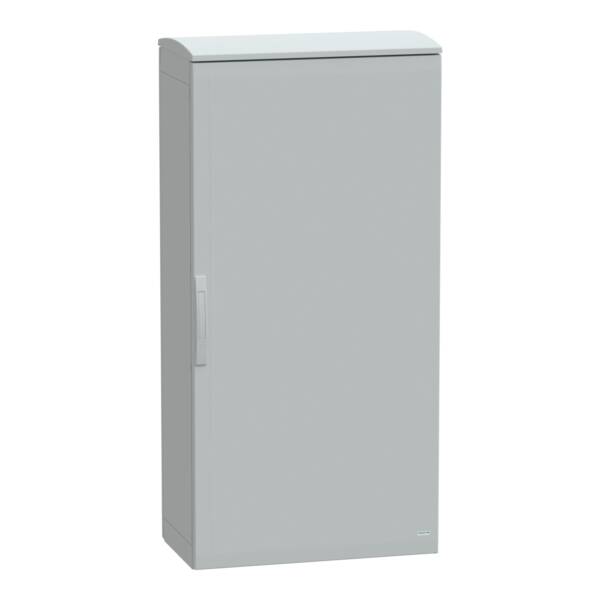

"This PLAT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "It measures 1500mm in height, 750mm in width, and 420mm in depth, and is made of polyester reinforced with fiberglass, making it highly durable and resistant to harsh environments" "The enclosure is available in grey (RAL 7035) and comprises two side parts, one plain front door, one rear panel, and one canopy" "The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside" "The door features a four-point lock with a handle that has a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP44 (IEC 60529) with a ventilated canopy, offering high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLAT1574G

Weight (kg)

44.00 kg

Type

Thalassa PLA

With mounting plate

FALSE

With glazed door

FALSE

Wall fastening possible

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Tackable

FALSE

Height

1500

Degree of protection (IP)

IP44

Pitched roof

FALSE

Colour

Grey

Width

750

Surface finishing

Untreated

Material

Plastic

Number of doors

1

Suitable for outdoor set-up

TRUE

Number of locks

1

Material quality

Polyester

Wall build in

FALSE

Depth

420

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

3

Pole fastening

FALSE

With backside door

FALSE

Floor installation possible

TRUE
