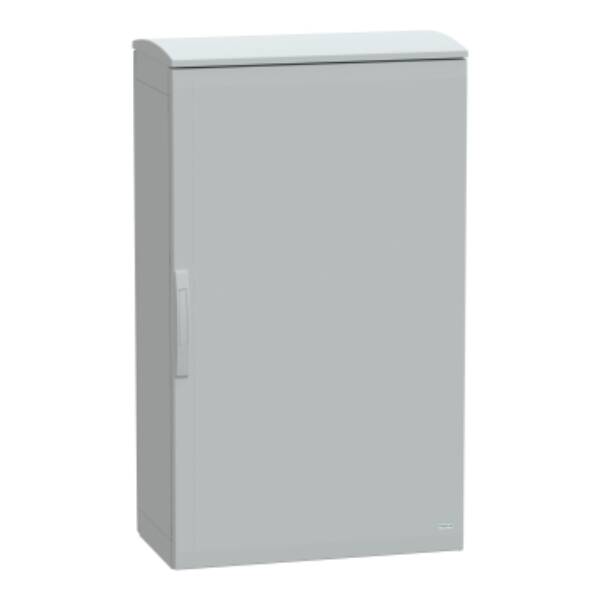

"This PLAT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "It measures 1250mm in height, 750mm in width, and 420mm in depth, and is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments" "The enclosure is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, and one canopy" "The door can be opened from either the right or left side up to 120°, and is fitted with a four-point lock and a handle with a 5mm double-bar insert" "The door, rear panel, and canopy can all be removed for maintenance purposes" "The enclosure is designed to provide robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "It also has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP44 (IEC 60529) with a ventilated canopy, providing high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLAT1274G

Weight (kg)

45.19 kg

Type

Thalassa PLA

With mounting plate

FALSE

With glazed door

FALSE

Wall fastening possible

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Tackable

FALSE

Height

1250

Degree of protection (IP)

IP44

Pitched roof

FALSE

Colour

Grey

Width

750

Surface finishing

Untreated

Number of doors

1

Material

Plastic

Suitable for outdoor set-up

TRUE

Number of locks

1

Material quality

Polyester

Wall build in

FALSE

Depth

420

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

3

With backside door

FALSE

Pole fastening

FALSE

Floor installation possible

TRUE
