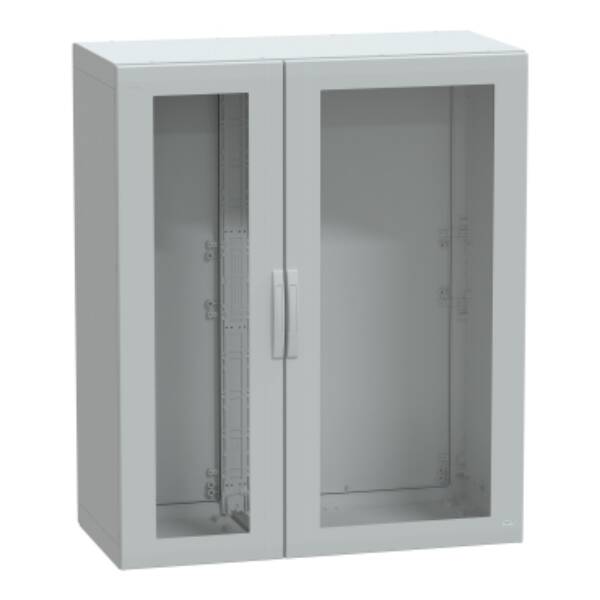

"This PLA version of the Thalassa PLA is a multi-purpose, floor-standing enclosure that is suitable for a variety of applications" "It comes with a sealed top and bottom part, assembled with side parts" "The enclosure has nominal dimensions of 1500mm in height, 1250mm in width, and 620mm in depth" "It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035)" "Consisting of two side parts, two transparent front doors, two rear panels, the enclosure is designed for easy access to the equipment inside" "The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a 5mm double-bar insert" "The doors and rear panels are also removable for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The enclosure also has an IK08 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP65 (IEC 60529), offering complete protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL and cUL listed, DNV marine certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA15126TG

Weight (kg)

97.00 kg

Type

Thalassa PLA

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

With cover

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1500

Degree of protection (IP)

IP65

Pitched roof

FALSE

Floor standing wall model

TRUE

Colour

Grey

Width

1250

Intermediate mounting

FALSE

Surface finishing

Untreated

Number of doors

2

Material

Plastic

Suitable for outdoor set-up

TRUE

Corner model

FALSE

Number of locks

1

Material quality

Polyester (PET)

Suitable for wall mounting

FALSE

Suitable for wall built-in

FALSE

Depth

620

Pre-stamping

FALSE

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

Other

With rear door

FALSE

Pole fastening

FALSE
