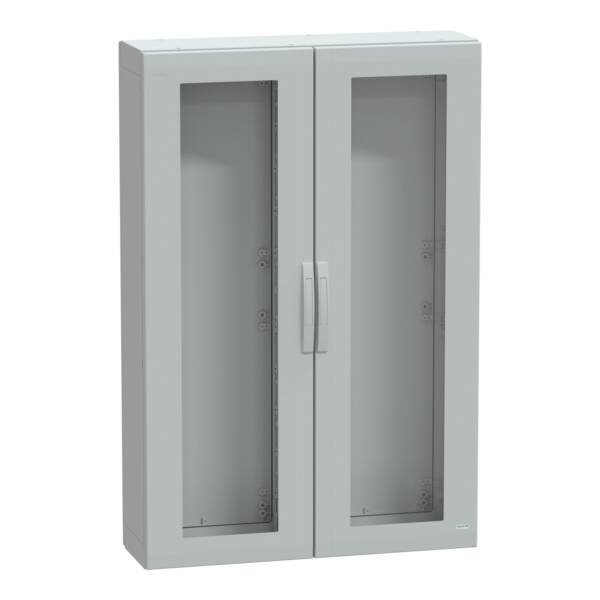

This PLA version of the PanelSeT is a multi-purpose, floor-standing enclosure that can be used for various applications It has nominal dimensions of 1500mm in height, 1000mm in width, and 320mm in depth The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh conditions, including outdoor and industrial settings It is available in grey (RAL 7035) and consists of two side parts, two transparent front doors, and two rear panels The doors can be opened from both the right and left sides up to 120°, and feature a four-point lock and a 5mm double-bar insert The doors and rear panels are removable for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard It is rated IK08 (IEC 62262), indicating high resistance to impacts, and IP65 (IEC 60529), providing excellent protection against dust and water Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL/cUL listed and DNV Marine certified, and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA15103TG

Weight (kg)

59.80 kg

Type

Thalassa PLA

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

With cover

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1500

Degree of protection (IP)

IP65

Pitched roof

FALSE

Floor standing wall model

FALSE

Colour

Grey

Width

1000

Intermediate mounting

FALSE

Surface finishing

Untreated

Material

Plastic

Number of doors

2

Number of locks

1

Suitable for outdoor set-up

TRUE

Corner model

FALSE

Suitable for wall mounting

TRUE

Material quality

Polyester (PET)

Depth

320

Suitable for wall built-in

FALSE

Pre-stamping

FALSE

With door

TRUE

Max. permissible load of the mounting plate according to IEC 62208

1324

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the enclosure according to IEC 62208

1638
