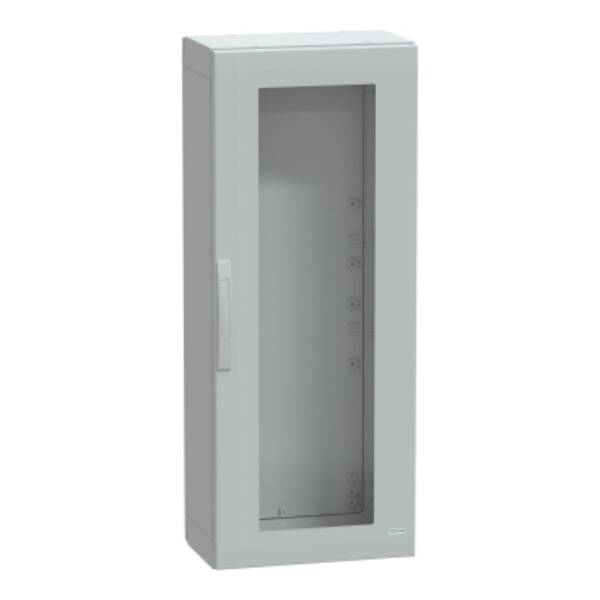

Floor standing encl. polyester vers.PLA compl.sealed 1250x500x320 IP65 glazed - Schneider Electric - NSYPLA1253TG
Floor standing encl. polyester vers.PLA compl.sealed 1250x500x320 IP65 glazed - Schneider Electric - NSYPLA1253TG

NSYPLA1253TG

Floor standing encl. polyester vers.PLA compl.sealed 1250x500x320 IP65 glazed - Schneider Electric - NSYPLA1253TG

Enclosures

List Price £882.24 +VAT

Our Price £661.68 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"This PLA is a versatile, floor-standing enclosure that is suitable for various applications" "It comes with a sealed top and bottom part, assembled with side parts" "The enclosure has nominal dimensions of 1250mm in height, 500mm in width, and 320mm in depth" "It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035)" "Consisting of two side parts, one transparent front door, one rear panel, and one plinth, the enclosure is designed for easy access to the equipment inside" "The door can be opened from both the right and left sides, up to 120°, and features a four-point lock with a 5mm double-bar insert" "The door and rear panel are also removable for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impacts, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The enclosure also has an IK08 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP65 (IEC 60529), offering complete protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL/cUL listed and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"
Brand
Schneider Electric
Range
PanelSeT PLA
Part No
NSYPLA1253TG
Weight (kg)
28.68 kg
Type
Thalassa PLA
With mounting plate
FALSE
With glazed door
TRUE
Wall fastening possible
TRUE
Suitable for metrical mounting
FALSE
RAL-number
7035
Tackable
TRUE
Height
1250
Degree of protection (IP)
IP65
Pitched roof
FALSE
Colour
Grey
Width
500
Surface finishing
Untreated
Material
Plastic
Number of doors
1
Suitable for outdoor set-up
TRUE
Number of locks
1
Material quality
Polyester
Depth
320
Wall build in
FALSE
Mounting plate depth-adjustable
FALSE
Impact strength
IK08
With ventilation door
FALSE
EMC-version
FALSE
With backside door
FALSE
Pole fastening
FALSE
Floor installation possible
TRUE

Datasheet for NSYPLA1253TG - Floor standing encl. polyester vers.PLA compl.sealed 1250x500x320 IP65 glazed - Schneider Electric - NSYPLA1253TG
