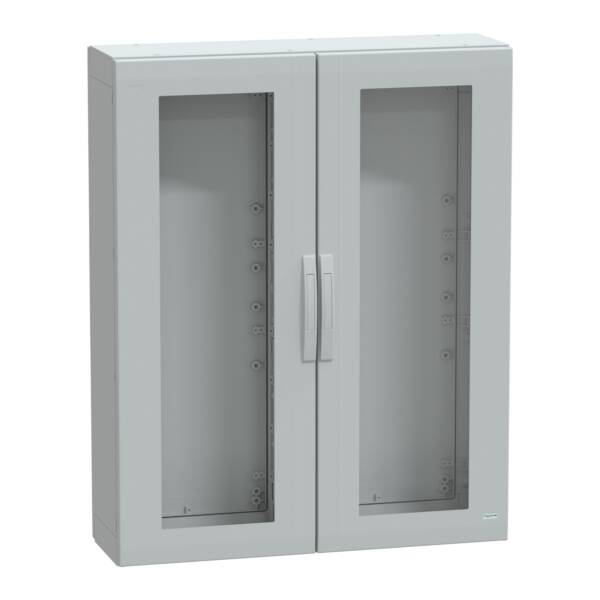

This PLA version of the PanelSeT is a multi-purpose, floor-standing enclosure that is suitable for various applications It comes with a sealed top and bottom, assembled with side parts The enclosure has nominal dimensions of 1250mm in height, 1000mm in width, and 320mm in depth It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings The enclosure is available in grey (RAL 7035) It consists of two side parts, two transparent front doors, and two rear panels The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a 5mm double-bar insert The doors and rear panels are also removable for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard The enclosure also has an IK08 rating (IEC 62262) for glazed doors and an IP65 rating (IEC 60529), providing complete protection against dust and water Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL/cUL listed, DNV Marine certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA12103TG

Weight (kg)

52.00 kg

Type

Thalassa PLA

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

With cover

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1250

Degree of protection (IP)

IP65

Pitched roof

FALSE

Floor standing wall model

FALSE

Colour

Grey

Width

1000

Intermediate mounting

FALSE

Surface finishing

Untreated

Number of doors

2

Material

Plastic

Number of locks

1

Suitable for outdoor set-up

TRUE

Corner model

FALSE

Suitable for wall mounting

TRUE

Material quality

Polyester (PET)

Depth

320

Suitable for wall built-in

FALSE

Pre-stamping

FALSE

With door

TRUE

Max. permissible load of the mounting plate according to IEC 62208

1304

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4

Pole fastening

FALSE

With rear door

FALSE

Max. permissible load of the enclosure according to IEC 62208

1304
