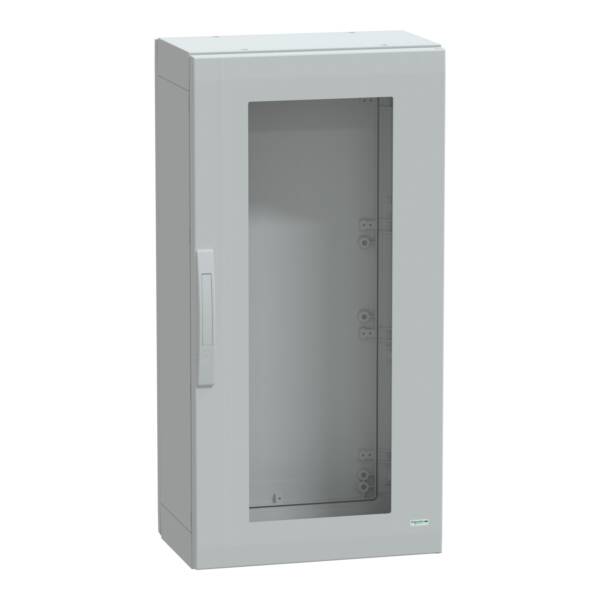

"This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "It measures 1000mm in height, 500mm in width, and 320mm in depth, and is made of polyester reinforced with fibreglass" "This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor" "The enclosure is available in grey (RAL 7035) color and comprises two side parts, one transparent front door, and one rear panel" "The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside" "The door features a four-point lock with a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes" "The enclosure is certified by DNV Marine, UL/cUL listed, and Veritas and is compliant with the IEC 62208 and UL 508 A standards" "It is highly resistant to impacts, with an IK08 rating according to IEC 62262, and provides excellent protection against dust and water, with an IP65 rating as per IEC 60529" "Furthermore, the enclosure has Class II electrical insulation, which prevents electric shocks and allows for the construction of completely insulated solutions" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -35 to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA1053TG

Weight (kg)

25.77 kg

Type

Thalassa PLA

With mounting plate

FALSE

With glazed door

TRUE

Wall fastening possible

TRUE

Suitable for metrical mounting

FALSE

RAL-number

7035

Tackable

TRUE

Height

1000

Degree of protection (IP)

IP65

Pitched roof

FALSE

Colour

Grey

Width

500

Surface finishing

Untreated

Number of doors

1

Material

Plastic

Suitable for outdoor set-up

TRUE

Number of locks

1

Material quality

Polyester

Depth

320

Wall build in

FALSE

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

With backside door

FALSE

Pole fastening

FALSE

Floor installation possible

TRUE
