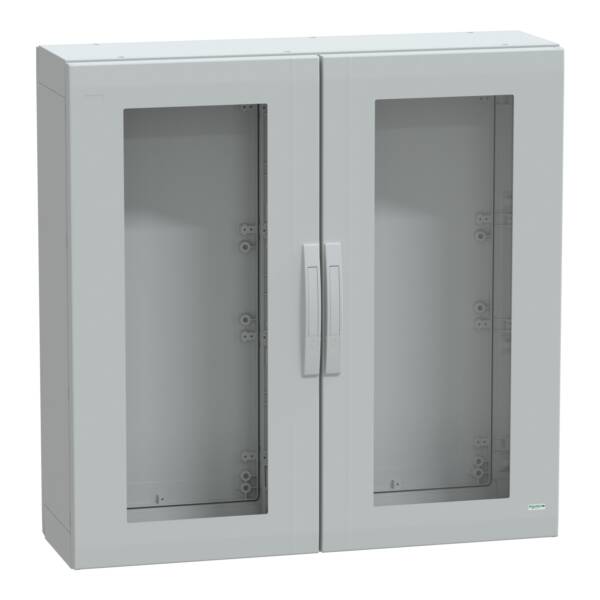

"This PLA version of the Thalassa PLA is a versatile, floor-standing enclosure suitable for various applications" "It measures 1000mm in height, 1000mm in width, and 320mm in depth" "The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments, including outdoor and industrial settings" "It is available in grey (RAL 7035)" "The enclosure consists of two side parts, two transparent front doors, two rear panels, and is designed for easy access to the equipment inside" "The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a 5mm double-bar insert" "The doors and rear panels are also removable for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard and has an IK08 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP65 (IEC 60529), offering complete protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL/cUL listed, DNV Marine certified, and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA10103TG

Weight (kg)

39.73 kg

Type

Thalassa PLA

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

With cover

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1000

Degree of protection (IP)

IP65

Pitched roof

FALSE

Floor standing wall model

FALSE

Colour

Grey

Width

1000

Intermediate mounting

FALSE

Surface finishing

Untreated

Number of doors

2

Material

Plastic

Suitable for outdoor set-up

TRUE

Number of locks

1

Corner model

FALSE

Suitable for wall mounting

TRUE

Material quality

Polyester (PET)

Depth

320

Suitable for wall built-in

FALSE

Pre-stamping

FALSE

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the enclosure according to IEC 62208

1314
