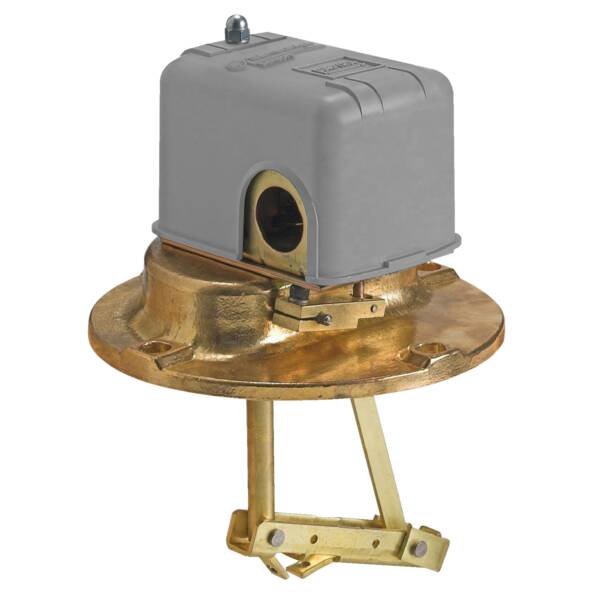

This product is part of the Nema Pressure Switches range, an offer of float switches. This float switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts. The closed tank float switch supports flange mounting method and horizontal float rod angle for operating in any position. It is furnished with screw clamp terminals for electrical connection and 3 knockouts for 1/2inch conduit. Offers electrical durability of 100 cycles and mechanical durability of 300 cycles. The enclosure is made of polypropylene or equivalent material. It weighs 4.59lb. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centres, complex and special machines. It is a NEMA 1 rated product. This product is certified by CE, CSA and UL. Meets UL 508 standards. Float switch is flange mounted. Float movement is transmitted through a quad ring seal. Each switch consists of a basic switch, float rod and float. The switch can be configured in the field for contacts that close on liquid rise.

Brand

Telemecanique Sensors

Range

NEMA Industrial Pressure Switches

Part No

9037EG9

Weight (kg)

1.90 kg

Type

NEMA Industrial Pressure Switches
