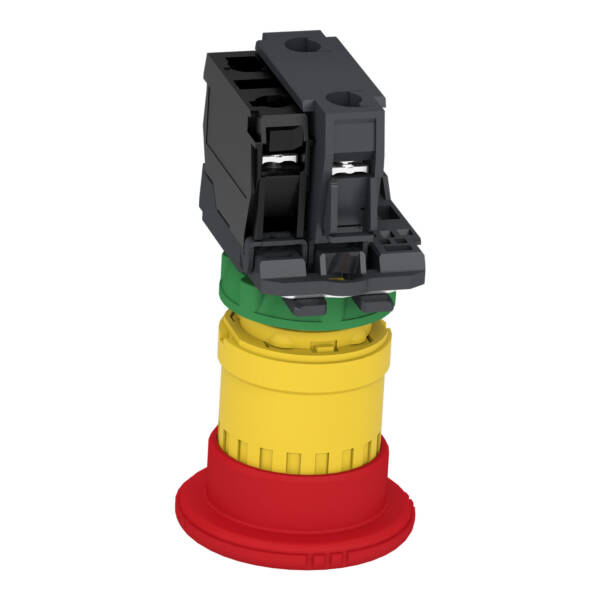

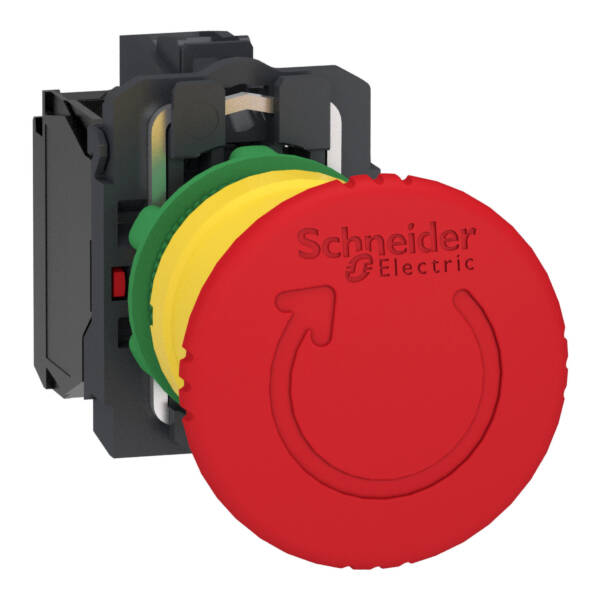

This product is part of the Harmony XB5 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This red Emergency stop pushbutton comes with a mushroom head. It operates with a turn to release mechanism. This mushroom headed pushbutton provides an ergonomic interface for controlling/stopping machines. It comes with 1 NC and 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a plastic bezal and has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB5 range offers innovative features for simple and efficient use.

Brand

Schneider Electric

Range

Harmony XB5

Part No

XB5AS84462

Weight (kg)

0.07 kg

Degree of protection (IP)

IP66

With lighting

FALSE

Number of contacts as normally closed contact

2

Connection type auxiliary circuit

Screw connection

Hole diameter

22

Diameter cap

40

Mounting method

Built-in

Unlocking method

Turn-release
