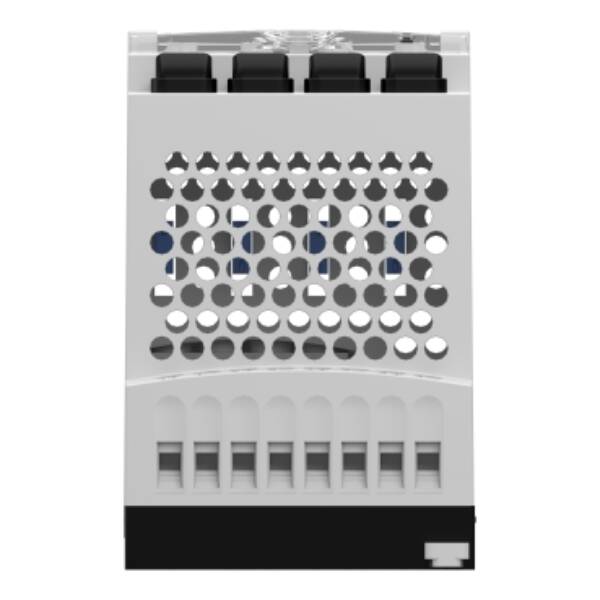

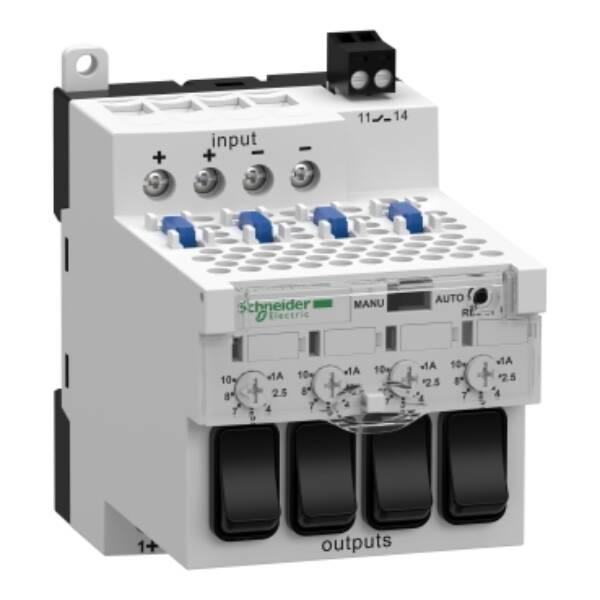

This ABL8 electronic protection module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 10A. This electronic protection module is ideal to protect up to 4 circuits against overloads and short-circuits with a total rated current of 10 amperes. It controls and protects up to 4 independent auxiliary circuits with a single power supply unit. Its complementary function is a 1-pole breaking by channel. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,470kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Brand

Schneider Electric

Range

Power supplies for industrial use, rail mounting

Part No

ABL8PRP24100

Weight (kg)

0.58 kg

Type

Power supplies for industrial use, rail mounting

Three-phase over current possible

FALSE

Contains function DC-voltage under current

TRUE

Three-phase under current possible

FALSE

Current measurement range

10…40 A

Single-phase over current possible

FALSE

External current transformer

FALSE

Type of electric connection

Screw connection

Single-phase under current possible

FALSE

Height

110

Voltage type for actuating

AC/DC

Single-phase hysteresis possible

FALSE

Three-phase hysteresis possible

FALSE

Width

71

Rated control supply voltage Us at AC 50HZ

19…32 V

Rated control supply voltage Us at AC 60HZ

19…32 V

Function DC-current hysteresis

FALSE

Contains function DC-voltage over current

TRUE

Depth

103

Rated control supply voltage Us at DC

24 V

With detachable clamps

TRUE

Number of contacts as normally closed contact

4
