Home
Products
LR97D25M7
electronic overload relay for motor TeSys - 5...25 A - 200...240 V AC - Schneider Electric - LR97D25M7
Control
List Price £108.86
+VAT
Our Price £81.65
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads

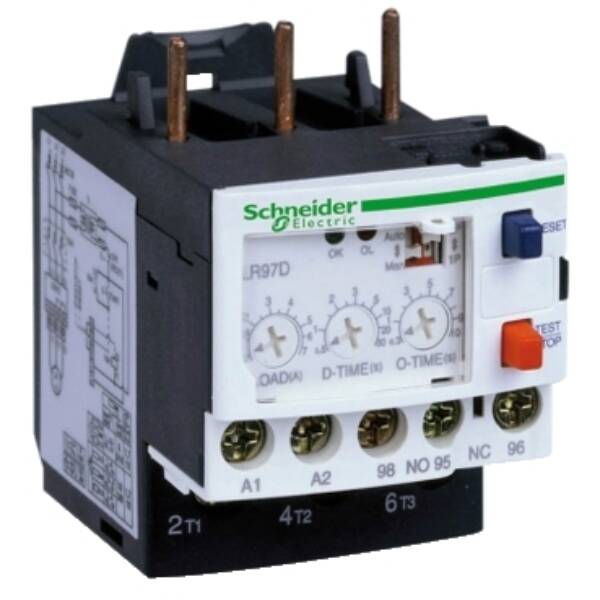

TeSys LR97D electronic overcurrent relay, 25A/690V, to be supplied with 200-240V AC, for protection of motors with a rated current 5-21A. It provides 3 dials to adjust the protection, LOAD (5-25A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration. In addition, the device trips when the current is higher than 3 x LOAD during more than 0.5sec in steady state and if there is a missing phase during more than 3sec. Settings also include selectors for 1-phase/3-phase motors and manual/automatic reset, the device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO/NC for fault signaling. Settings can be locked by sealing the transparent cover. For direct attachment to the bottom terminals of a 3-phase contactor LC1D09-D38, with screw clamp terminals on bottom, the separate mounting from the contactor is possible using the terminal block LAD7B106 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC, EAC), compliant RoHs/Reach.
Brand
Schneider Electric
Range
TeSys Deca electronic relays
Part No
LR97D25M7
Weight (kg)
0.20 kg
Type
TeSys Deca electronic relays
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
200…240 V
Rated control supply voltage Us at AC 60HZ
200…240 V
Release class
Adjustable
Number of auxiliary contacts as change-over contact
1
Mounting method
Direct attachment
Reset function automatic
TRUE
Reset function input
TRUE
Voltage type for actuating
AC
Adjustable current range
5…25 A
Reset function push-button
TRUE
Datasheet for LR97D25M7 - electronic overload relay for motor TeSys - 5...25 A - 200...240 V AC - Schneider Electric - LR97D25M7
Download
