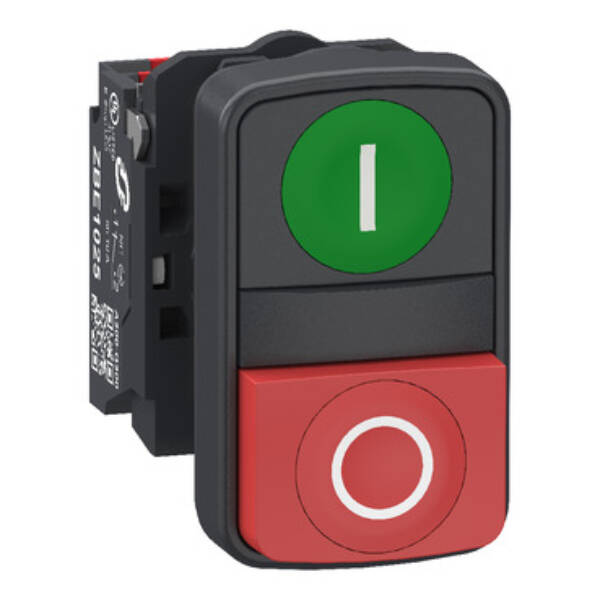

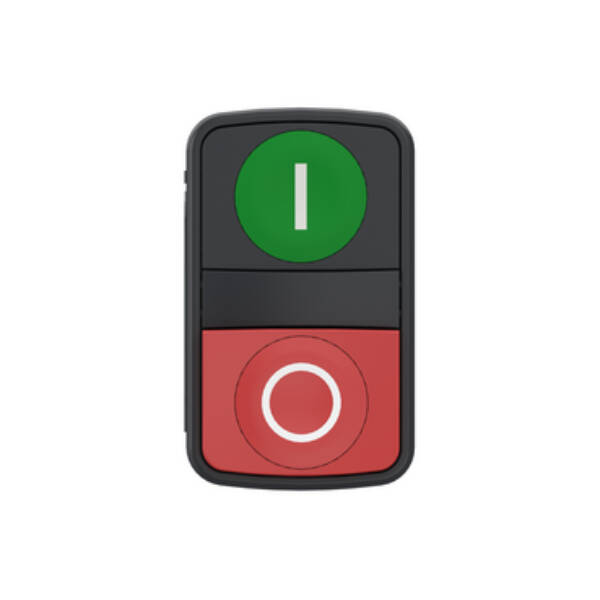

This Harmony XB5 double-headed pushbutton provides a complete 2 button interface to your machines with a single panel cut-out. Its schematic is distinguishable thanks to clear colors and markings (white “I” on green background and white “0” on a red background), minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs and connected with push-in terminal connections. The XB5AL734155 pushbutton is equipped with 1 normally open (NO) and 1 normally closed (NC) contact, featuring a slow break operation. This product is made from plastic, it weighs 45g. High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13) Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Brand

Schneider Electric

Range

Harmony XB5

Part No

XB5AL734155

Weight (kg)

0.05 kg

Type

Harmony XB5

Spring-return

TRUE

Colour front ring

Grey

Type of electric connection

Other

Material front ring

Plastic

Hole diameter

22.5

Switching function latching

FALSE

Type of button

Combination

Number of contacts as normally open contact

1

Construction type lens

Rectangular

Colour button

Red/green

With front ring

TRUE

Degree of protection (IP)

IP67/IP69K

Suitable for illumination

FALSE

Number of command positions

2

Transparent

FALSE

Number of contacts as normally closed contact

1

Degree of protection (NEMA)

4X, 13
