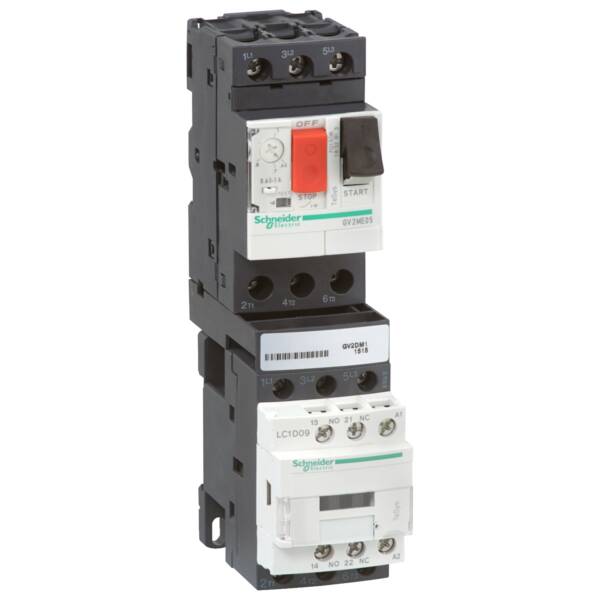

DOL combination starter - TeSys GV2-DM - 2.5…4 A - 24 V DC One way or reverser starters with circuit breaker protection (GV2ME for standard protection or GV2P/GV3P with increased breaking capacity and rotatory handle) from 0,06kW to 30kW/415V – Din rail mounted One way with Fuse protection (LS1D or GK Fuse holder) from 4 to 45kW/415V – plate mounted Pre-assembled Star-delta starters from 5.5 kW to 355kW based on TeSys K, TeSys D or TeSys F contactors Star-delta starters also available from 7.5kW to 132kW for customer assembly Suitable for plate or Din rail mounted for TeSys D, Din rail mounted for TeSys K and Plate/chassis mounting for TeSys F Type 1 or type 2 coordination with fuses and breakers - Range Benefits: Take control of integration Offering you quick and simple selection Motor starter combinations based on TeSys offers Schneider Electric provide the product compatibility and wide range of accessories Quick and easy assembly of components - Range Application Presentation: Wide range of motor starters applications in industries and buildings. Dedicated to Star-Delta motors to reduce current peak during the starting phase.

Brand

Schneider Electric

Range

TeSys GV2, LC

Part No

GV2DM108BD

Weight (kg)

0.87 kg

Type

TeSys GV2, LC

Type of electrical connection of main circuit

Screw connection

Rated operation power at AC-3, 400 V

1.5

Rated conditional short-circuit current, type 1, 480 Y/277 V

50000

Supporting protocol for SERCOS

FALSE

Rated operation current Ie

4

Rated conditional short-circuit current, type 1, 600 Y/347 V

3000

Overload release current setting

2.5…4 A

With transformer

FALSE

Ambient temperature, upper operating limit

60

External reset possible

FALSE

Rated operation current at AC-3, 400 V

4

Type of electrical connection for auxiliary- and control current circuit

Screw connection

Temperature compensated overload protection

TRUE

Height

177

Voltage type for actuating

DC

Supporting protocol for INTERBUS-Safety

FALSE

Number of command positions

2

Width

45

Release class

CLASS 10

Number of auxiliary contacts as normally closed contact

1

Number of auxiliary contacts as normally open contact

1

Supporting protocol for AS-Interface Safety at Work

FALSE

Coordination class according to IEC 60947-4-3

Class 1

Depth

96

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Rated operation power at AC-3, 230 V, 3-phase

0.75

Supporting protocol for ASI

FALSE

Kind of motor starter

Direct starter

Supporting protocol for PROFIBUS

FALSE

Supporting protocol for TCP/IP

FALSE

Degree of protection (IP)

IP20

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

Rail mounting possible

TRUE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for MODBUS

FALSE

Supporting protocol for Data-Highway

FALSE

Suitable for emergency stop

FALSE

Supporting protocol for LON

FALSE

With fuse

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

With short-circuit release

TRUE

Rated power, 575 V, 60 Hz, 3-phase

2.2

Rated power, 460 V, 60 Hz, 3-phase

1.5

Rated control supply voltage Us at DC

24 V
