NSYDLP264G

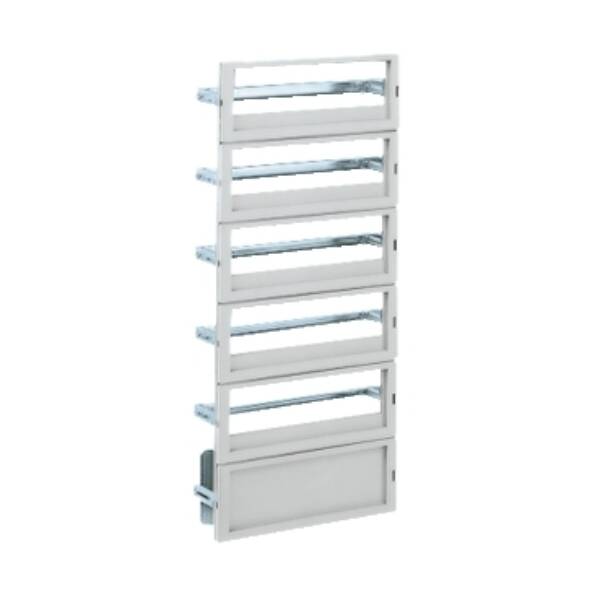

DLP modular dist chassis 264modules(18mm) insulating material for PLA H1500xW750 - Schneider Electric - NSYDLP264G

Enclosures

~~List Price £426.92 +VAT~~

Our Price £320.19 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

"DLP chassis for Thalassa PLA and Thalassa PHD enclosures" "The chassis is to be fixed on front of enclosure by fixing elements with supports location" "The width is 750mm" The height is 1500mm Number of 18mm modules is 264 (1 module = 2 steps = 18 mm) Number of horizontal rows is 8 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The front panel is made from self-extinguishing and chassis structure and rails are made from galvanised steel The front has a grey (RAL 7035) color Number of cut-outs is 8 The kit is made up of 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 1 plain front panel and 8 front panels with 35mm DIN rails IP2x not respected when chassis is mounted at 67mm "This product is qualified as a green premium, with minimal use of hazardous substances"

Brand: Schneider Electric
Range: PanelSeT PLA
Part No: NSYDLP264G
Weight (kg): 6.60 kg
Type: Thalassa PLA
