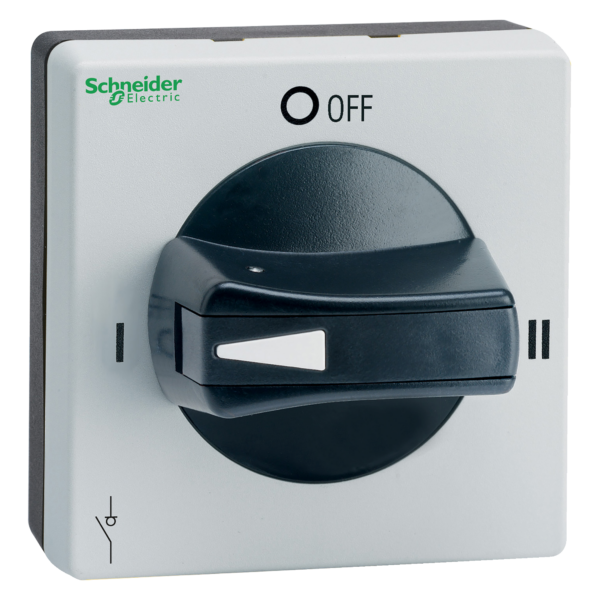

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This black rotary handle will work with VLS8C mechanical interlock mechanism. This 2.56 inch by 2.56 inch handle is mounted using four screws. 5 mm shafts are used with this handle. The front plate is grey in color. Handle is marked I / O OFF / II. Handle is 2.56 inches tall, 2.56 inches wide and 2.28 inches deep. The handle weighs 0.17 lbs. This handle is NEMA 1, 3R, 12, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements. This handle is cULus Listed and meets IEC 60947-3 requirements.

Brand

Schneider Electric

Range

Tesys VLS

Part No

VLSH2S5BC

Weight (kg)

0.07 kg

Type

Tesys VLS
