TPRST080

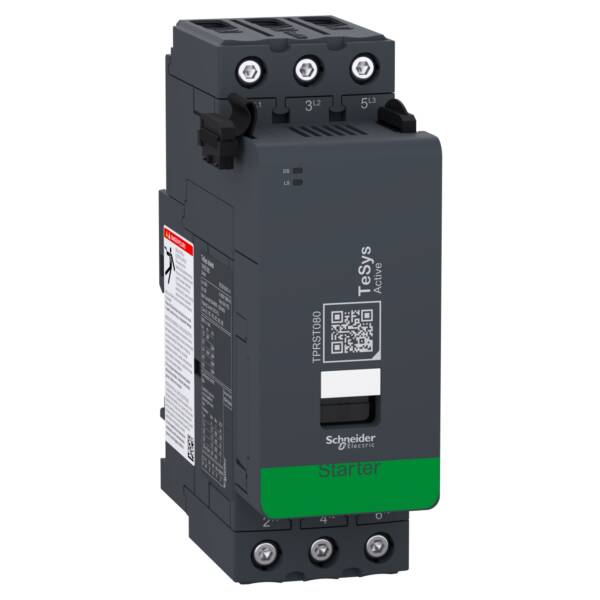

Direct online starter, TeSys island, 80A AC-1, 66A AC-3, 37kW / 40hp - Schneider Electric - TPRST080

Automation

TeSys island direct starter, 3 poles, 80A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 80A and motors up to 37kW@400V / 40hp@480V. It provides motor protection functions including thermal overload (setting 4-80A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

~~List Price £209.00 +VAT~~

Our Price £156.75 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
