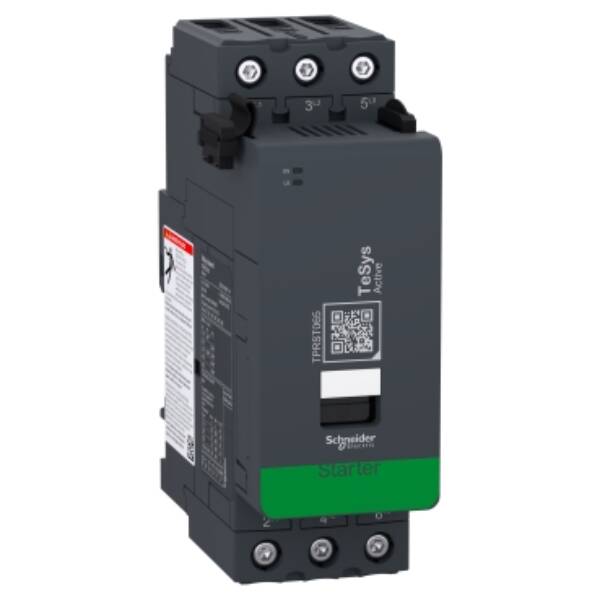

Direct online starter, TeSys island, 80A AC-1, 65A AC-3, 30kW / 40hp - Schneider Electric - TPRST065

Direct online starter, TeSys island, 80A AC-1, 65A AC-3, 30kW / 40hp - Schneider Electric - TPRST065

TPRST065

Direct online starter, TeSys island, 80A AC-1, 65A AC-3, 30kW / 40hp - Schneider Electric - TPRST065

Control

~~List Price £200.00 +VAT~~

Our Price £150.00 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys island direct starter, 3 poles, 65A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 65A and motors up to 30kW@400V / 40hp@480V. It provides motor protection functions including thermal overload (setting 3.35-65A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Brand: Schneider Electric
Range: TeSys island
Part No: TPRST065
Weight (kg): 1.32 kg
Type: TeSys island
Number of inputs: 1
Number of motor outlets: 1
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: 2
With brake output: FALSE
craft\elements\db\ElementQuery: None
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: None
Permitted voltage at output: 0…690 V
Permitted voltage at input: 0…690 V
craft\elements\db\ElementQuery: FALSE
Type of voltage (input voltage): AC
craft\elements\db\ElementQuery: TRUE
With thermal motor protection: TRUE
Height: 167
craft\elements\db\ElementQuery: FALSE
Width: 55
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: None
craft\elements\db\ElementQuery: FALSE
Depth: 125
craft\elements\db\ElementQuery: None
craft\elements\db\ElementQuery: FALSE
Supporting protocol for EtherNet/IP: FALSE
craft\elements\db\ElementQuery: FALSE
With motor current parameter setting: FALSE
Rated operation current of the motor: 3.35…65 A
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: Plug-in connection
Short-circuit protection, outputs available: FALSE
craft\elements\db\ElementQuery: DC
craft\elements\db\ElementQuery: FALSE
Supporting protocol for PROFINET IO: FALSE
craft\elements\db\ElementQuery: FALSE
Type of digital output: None
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: FALSE
Supporting protocol for PROFIBUS: FALSE
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: FALSE
Supporting protocol for TCP/IP: FALSE
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: FALSE
Degree of protection (IP): IP20
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: AC
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: FALSE
Type of electrical connection at the motor output: Screw connection
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: TRUE
Suitable for safety functions: FALSE
Supporting protocol for MODBUS: FALSE
craft\elements\db\ElementQuery: FALSE
Supply voltage DC: 20.4…28.8 V
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: FALSE
