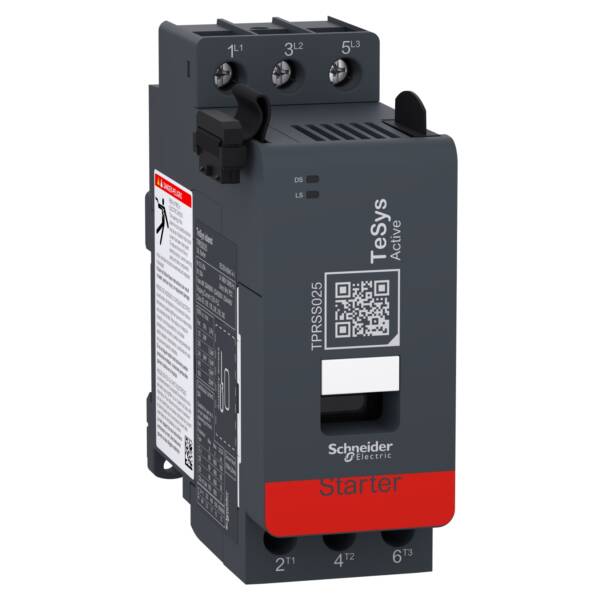

Direct online SIL starter, TeSys island, 30A AC-1, 25A AC-3, 11kW / 15hp - Schneider Electric - TPRSS025

Direct online SIL starter, TeSys island, 30A AC-1, 25A AC-3, 11kW / 15hp - Schneider Electric - TPRSS025

TPRSS025

Direct online SIL starter, TeSys island, 30A AC-1, 25A AC-3, 11kW / 15hp - Schneider Electric - TPRSS025

Control

~~List Price £86.00 +VAT~~

Our Price £64.50 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys island direct SIL starter, 3 poles, 25A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 25A and motors up to 11kW@400V / 15hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.5-25A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Brand: Schneider Electric
Range: TeSys island
Part No: TPRSS025
Weight (kg): 0.77 kg
Type: TeSys island
Number of inputs: 1
Number of motor outlets: 1
Supporting protocol for SERCOS: FALSE
Number of HW-interfaces other: 2
SIL according to IEC 61508: 2
With brake output: FALSE
With optical interface: FALSE
System accessory: TRUE
Performance level acc. EN ISO 13849-1: Level d
Permitted voltage at output: 0…690 V
Permitted voltage at input: 0…690 V
Radio standard GPRS: FALSE
Type of voltage (input voltage): AC
With thermal motor protection: TRUE
Fieldbus connection over separate bus coupler possible: TRUE
Height: 121
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 2
Width: 45
Supporting protocol for AS-Interface Safety at Work: FALSE
Explosion safety category for dust: None
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Depth: 115
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With motor current parameter setting: FALSE
Rated operation current of the motor: 0.5…25 A
Supporting protocol for SafetyBUS p: FALSE
Type of electric connection: Plug-in connection
Voltage type of supply voltage: DC
Short-circuit protection, outputs available: FALSE
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Type of digital output: None
Radio standard Bluetooth: FALSE
Supporting protocol for ASI: FALSE
Appendant operation agent (Ex ia): FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Front build in possible: FALSE
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Degree of protection (IP): IP20
Appendant operation agent (Ex ib): FALSE
Supporting protocol for CAN: FALSE
IO link master: FALSE
Type of output voltage: AC
Supporting protocol for INTERBUS: FALSE
Type of electrical connection at the motor output: Screw connection
Rail mounting possible: TRUE
Supporting protocol for DeviceNet: FALSE
Supporting protocol for MODBUS: FALSE
Suitable for safety functions: TRUE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 20.4…28.8 V
Rack-assembly possible: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: TRUE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
