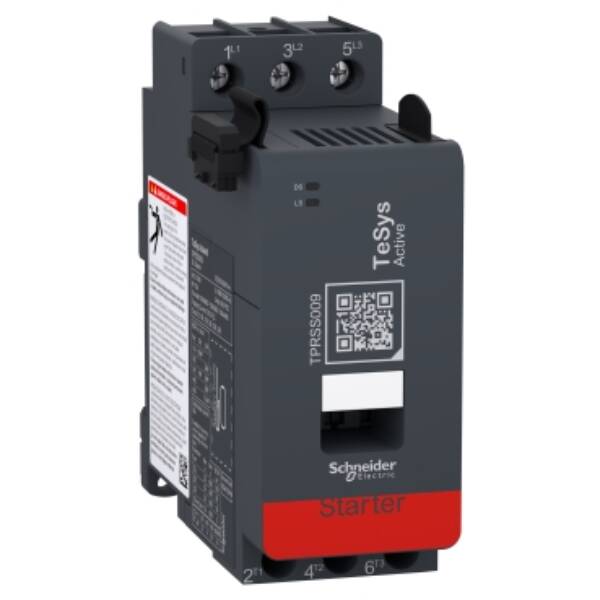

Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - Schneider Electric - TPRSS009
Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - Schneider Electric - TPRSS009

TPRSS009

Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - Schneider Electric - TPRSS009

Control

List Price £68.00 +VAT

Our Price £51.00 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys island direct SIL starter, 3 poles, 9A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Brand
Schneider Electric
Range
TeSys island
Part No
TPRSS009
Weight (kg)
0.71 kg
Type
TeSys island
Number of inputs
1
Number of motor outlets
1
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
2
With brake output
FALSE
craft\elements\db\ElementQuery
2
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
Level d
Permitted voltage at output
0…690 V
Permitted voltage at input
0…690 V
craft\elements\db\ElementQuery
FALSE
Type of voltage (input voltage)
AC
With thermal motor protection
TRUE
craft\elements\db\ElementQuery
TRUE
Height
116
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
2
Width
45
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
None
craft\elements\db\ElementQuery
FALSE
Depth
115
craft\elements\db\ElementQuery
None
craft\elements\db\ElementQuery
FALSE
Supporting protocol for EtherNet/IP
FALSE
craft\elements\db\ElementQuery
FALSE
With motor current parameter setting
FALSE
Rated operation current of the motor
0.18…9 A
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
Plug-in connection
Short-circuit protection, outputs available
FALSE
craft\elements\db\ElementQuery
DC
craft\elements\db\ElementQuery
FALSE
Supporting protocol for PROFINET IO
FALSE
craft\elements\db\ElementQuery
FALSE
Type of digital output
None
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
Supporting protocol for PROFIBUS
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
Supporting protocol for TCP/IP
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
Degree of protection (IP)
IP20
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
AC
Type of electrical connection at the motor output
Screw connection
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
TRUE
Suitable for safety functions
TRUE
Supporting protocol for MODBUS
FALSE
craft\elements\db\ElementQuery
FALSE
Supply voltage DC
20.4…28.8 V
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE

Datasheet for TPRSS009 - Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - Schneider Electric - TPRSS009

Download
