Brand
-
Schneider Electric
-
Range
-
TeSys island
-
Part No
-

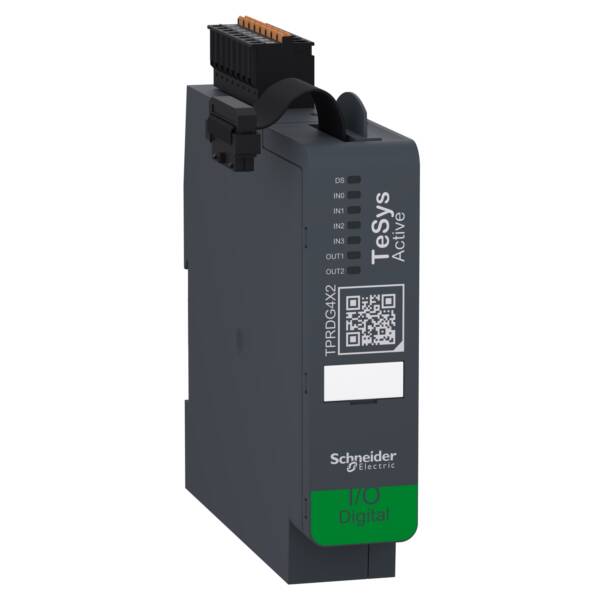

TPRDG4X2
-
Weight (kg)
-
0.24 kg
-
Type
-
TeSys island
-
Supporting protocol for SERCOS
-
FALSE
-
Number of HW-interfaces other
-
2
-
SIL according to IEC 61508
-
None
-
With optical interface
-
FALSE
-
Digital inputs configurable
-
TRUE
-
System accessory
-
TRUE
-
Digital outputs configurable
-
TRUE
-
Permitted voltage at output
-
0…28.8 V
-
Performance level acc. EN ISO 13849-1
-
None
-
Permitted voltage at input
-
0…28.8 V
-
Radio standard GPRS
-
FALSE
-
Type of voltage (input voltage)
-
DC
-
Height
-
118
-
Time delay at signal exchange
-
5 ms
-
Fieldbus connection over separate bus coupler possible
-
TRUE
-
Supporting protocol for INTERBUS-Safety
-
FALSE
-
Width
-
25
-
Supporting protocol for AS-Interface Safety at Work
-
FALSE
-
Radio standard GSM
-
FALSE
-
Explosion safety category for dust
-
None
-
Radio standard UMTS
-
FALSE
-
Depth
-
114
-
Explosion safety category for gas
-
None
-
Supporting protocol for DeviceNet Safety
-
FALSE
-
Supporting protocol for EtherNet/IP
-
FALSE
-
Supporting protocol for Foundation Fieldbus
-
FALSE
-
Input current at signal 1
-
7
-
Type of electric connection
-
Plug-in connection
-
Supporting protocol for SafetyBUS p
-
FALSE
-
Output, current
-
0.5
-
Voltage type of supply voltage
-
DC
-
Short-circuit protection, outputs available
-
FALSE
-
Supporting protocol for PROFINET CBA
-
FALSE
-
Supporting protocol for PROFINET IO
-
FALSE
-
Supporting protocol for PROFIsafe
-
FALSE
-
Type of digital output
-
Other
-
Radio standard Bluetooth
-
FALSE
-
Supporting protocol for ASI
-
FALSE
-
Appendant operation agent (Ex ia)
-
FALSE
-
Supporting protocol for PROFIBUS
-
FALSE
-
Radio standard WLAN 802.11
-
FALSE
-
Supporting protocol for TCP/IP
-
FALSE
-
Front build in possible
-
FALSE
-
Supporting protocol for KNX
-
FALSE
-
Supporting protocol for CAN
-
FALSE
-
Appendant operation agent (Ex ib)
-
FALSE
-
Degree of protection (IP)
-
IP20
-
IO link master
-
FALSE
-
Supporting protocol for INTERBUS
-
FALSE
-
Type of output voltage
-
DC
-
Supporting protocol for DeviceNet
-
FALSE
-
Rail mounting possible
-
TRUE
-
Suitable for safety functions
-
FALSE
-
Number of digital outputs
-
2
-
Supporting protocol for MODBUS
-
FALSE
-
Number of digital inputs
-
4
-
Supporting protocol for Data-Highway
-
FALSE
-
Supply voltage DC
-
20.4…28.8 V
-
Rack-assembly possible
-
FALSE
-
Supporting protocol for LON
-
FALSE
-
Supporting protocol for other bus systems
-
TRUE
-
Supporting protocol for SUCONET
-
FALSE
-
Wall mounting/direct mounting
-
FALSE
