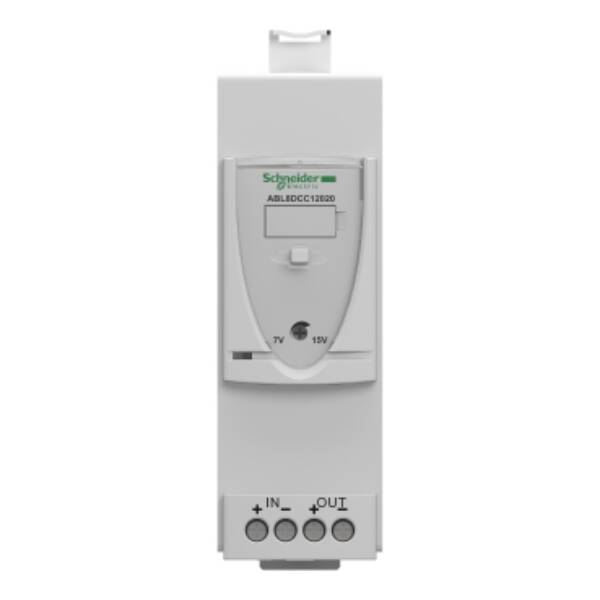

This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 2A at 12V DC and a rated power output of 24W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Brand

Schneider Electric

Range

Power supplies for industrial use, rail mounting

Part No

ABL8DCC12020

Weight (kg)

0.60 kg

Type

Power supplies for industrial use, rail mounting

Type of electric connection

Screw connection

Direct mounting possible

FALSE

Voltage type of supply voltage

DC

Stabilized

TRUE

Modular version

TRUE

SIL according to IEC 61508

None

Short-circuit-proof

TRUE

Performance level acc. EN ISO 13849-1

None

Nominal value output current 1

2

Power output

24

Height

143

Degree of protection (IP)

IP20

Rated supply voltage at DC

24…28.8 V

Nominal value output voltage 1

12

Max. output current 1

2

Output voltage stabilized

TRUE

Width

44

Rail mounting possible

TRUE

Wall mounting possible

FALSE

Suitable for safety functions

TRUE

Depth

140

Secondary voltage adjustable

TRUE

1st secondary output voltage

7…15 V
