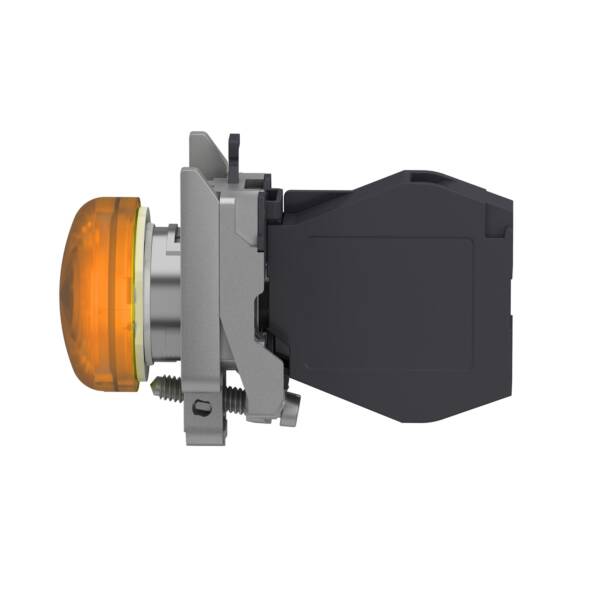

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete pilot light has a circular head shape and comes with integral yellow LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This complete pilot light with plain lens provides clear visual feedback on the status of machines. This pilot light has a 24V to 254V AC/DC rating. It weighs 83g. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Brand

Schneider Electric

Range

Harmony XB4 ATEX D

Part No

XB4BVBM5GEX

Weight (kg)

0.11 kg

Type

Harmony XB4 ATEX D

With light source

TRUE

Number of indicator lights

1

Colour lens

Orange

Rated operating voltage Ue

24…240 V

Colour front ring

Black

Type of electric connection

Spring clamp connection

Voltage type

AC/DC

Hole diameter

22.5

Material front ring

Metal

Type of lamp socket

LED

Construction type lens

Round

With front ring

TRUE

Degree of protection (IP)

IP65

Type of lens

Flat

Degree of protection (NEMA)

13
