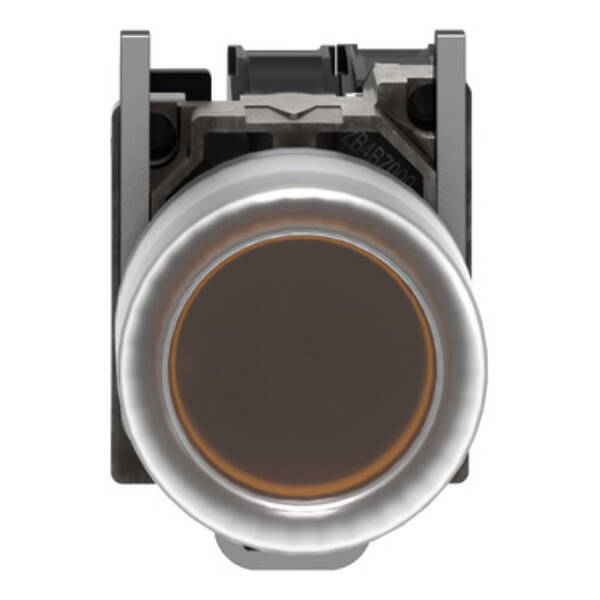

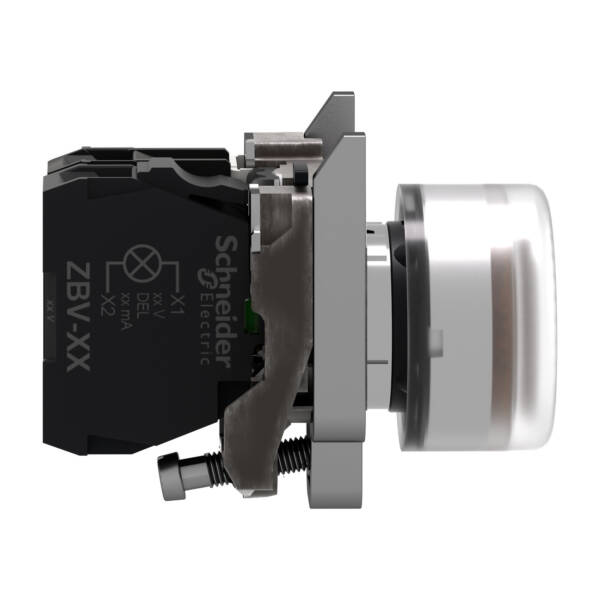

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This yellow pushbutton has a circular head shape with a booted, clear silicon flush push and is supplied with an integral LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22. This illuminated pushbutton with integral LED provides an ergonomic and visual interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. This pushbutton has a 24V AC/DC rating. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Brand

Schneider Electric

Range

Harmony XB4 ATEX D

Part No

XB4BP583B5EX

Weight (kg)

0.09 kg

Type

Harmony XB4 ATEX D

Spring-return

TRUE

Colour front ring

Chrome

Type of electric connection

Screw connection

Hole diameter

22.5

Material front ring

Metal

Supply voltage lamp

24

Switching function latching

FALSE

Type of button

Flat

Number of contacts as normally open contact

1

Construction type lens

Round

Colour button

Yellow

With front ring

TRUE

Suitable for illumination

TRUE

Degree of protection (IP)

IP65

Number of command positions

1
