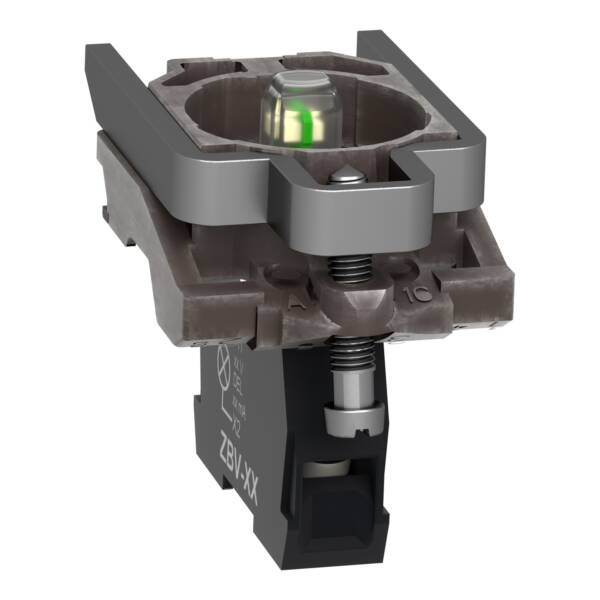

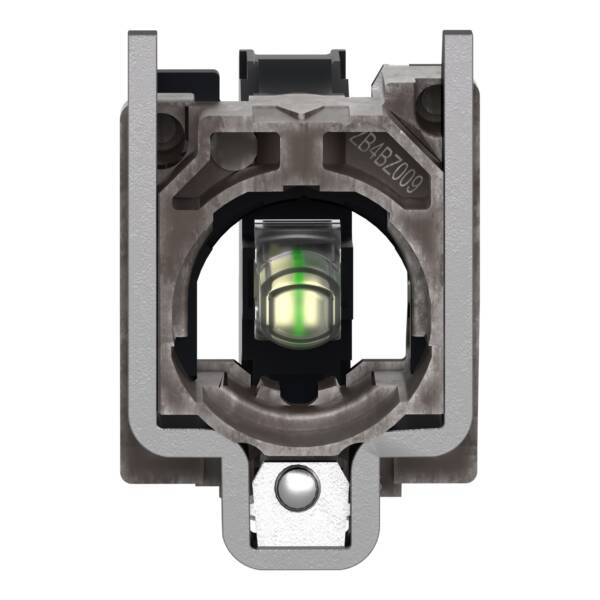

"This Harmony XB4, light block with body/fixing collar operates with a universal LED 110 V to 120 V AC. " "It has a metal body and is compatible with Harmony XB4 pilot lights. " "This light block allows fast and easy replacement and configuration of your signaling units. " "It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. " "It enables visual distinction of signaling units via illumination by universal LED. " "It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. " "It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. " "Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. " "Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine. "

Brand

Schneider Electric

Range

Harmony XB4

Part No

ZB4BV18G1

Weight (kg)

0.05 kg

Type

Harmony XB4

With light source

TRUE

Type of fastening

Front fastening

With integrated voltage decreasing resistor

FALSE

Connection type auxiliary circuit

Screw connection

With integrated diode

TRUE

Lamp holder

Other

Lamp type

LED

Rated voltage Ue at AC 50 Hz

110…120 V

Colour lamp

White

Transformer integrated

FALSE

Voltage type for actuating

AC/DC

Rated voltage Ue at AC 60 Hz

110…120 V
