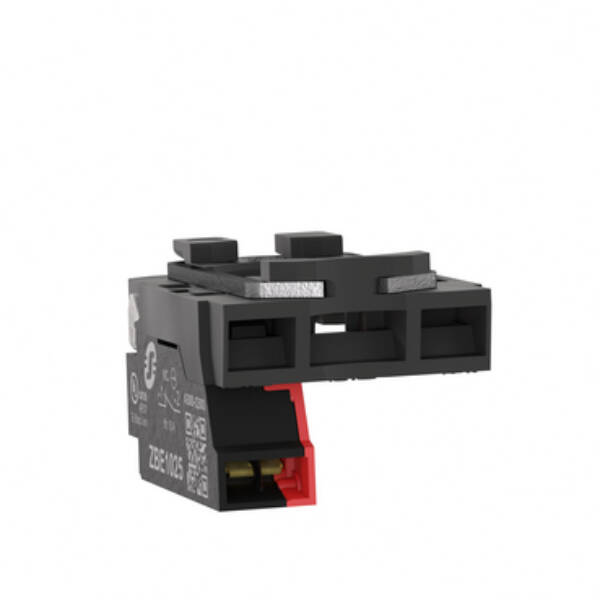

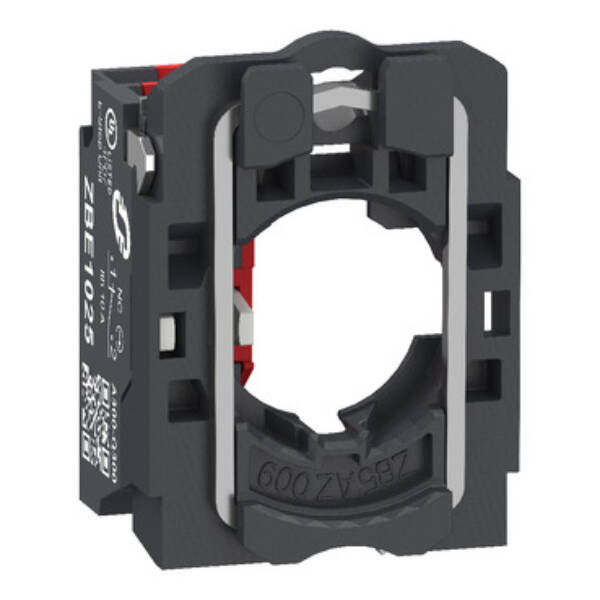

This Harmony XB5, single contact block is pre-assembled on a body/collar fixing unit. It features 1 normally closed (NC) contact. It is compatible with Harmony XB5 units. It consists of a single contact block pre-assembled on a fixing collar unit. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This plastic product weighs 17g. It is easily installed with push-in terminal connections. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications "It meets JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, UL 508 and JIS C8201-1 standards." "It is installed into a Ø 22mm panel cutout." Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes. "The modular range of Ø 22mm metal control and signaling units combines simplicity of installation, modern standard and flush mounted design."

Brand

Schneider Electric

Range

Harmony XB5

Part No

ZB5AZ1025

Weight (kg)

0.02 kg

Type

Harmony XB5
