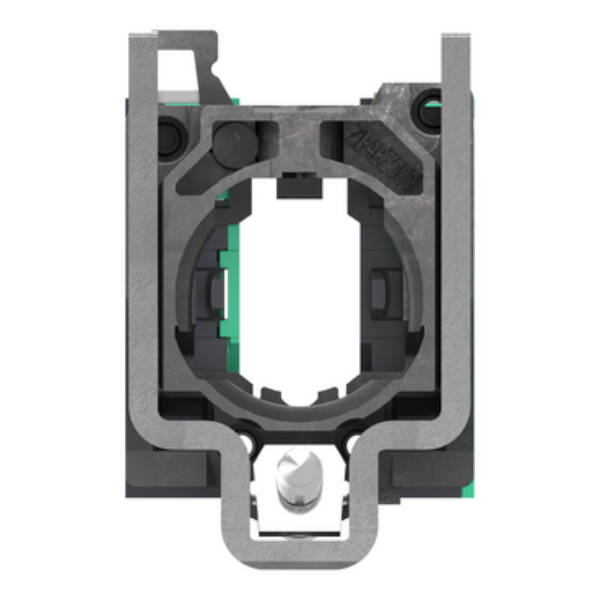

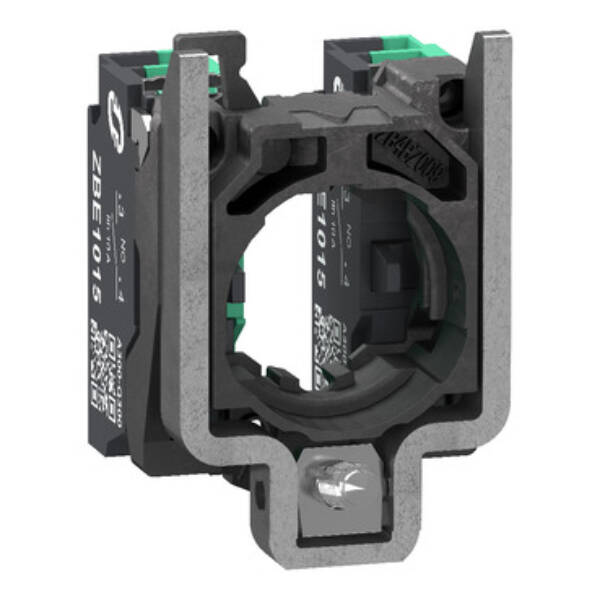

Complete body contact assembly, Harmony XB4, single contact, with fixing collar, metal, 2 NO, compact push in terminals - Schneider Electric - ZB4BZ1035

ZB4BZ1035

single contact block with body/fixing collar 2NO spring clamp terminal - Schneider Electric - ZB4BZ1035

Control

~~List Price £12.92 +VAT~~

Our Price £9.69 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. It features 2 normally open (NO) contacts. It is compatible with Harmony XB4 units. It consists of a single contact block pre-assembled on a fixing collar unit. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This metal product weighs 54g. It is easily installed with push-in terminal connections. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Brand: Schneider Electric
Range: Harmony XB4
Part No: ZB4BZ1035
Weight (kg): 0.06 kg
Type: Harmony XB4
Number of contacts as normally open contact: 2
Type of electric connection: Spring clamp connection
Model: Integrable
Rated operation current Ie at AC-15, 230 V: 3
Mounting method: Other
Lamp holder: None
