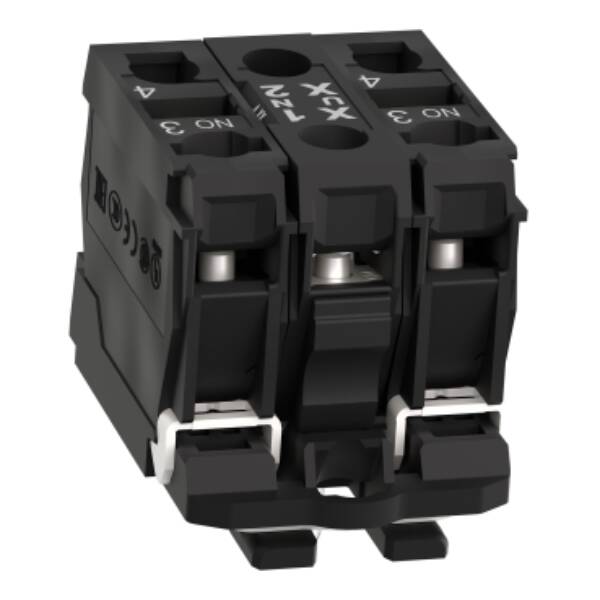

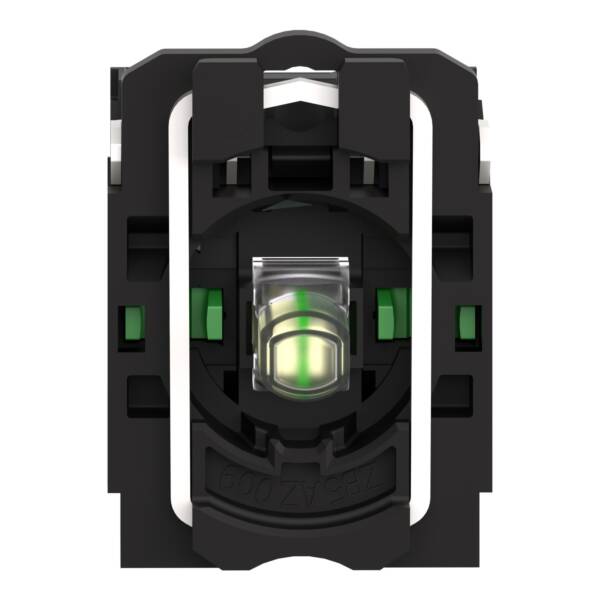

This Harmony XB5, light block with body/fixing collar operates with a universal LED. It has 2 x NO contacts and a plastic body and is compatible with Harmony XB5 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Brand

Schneider Electric

Range

Harmony XB5

Part No

ZB5AW0B13

Weight (kg)

0.04 kg

Type

Harmony XB5

With light source

TRUE

Type of fastening

Front fastening

With integrated voltage decreasing resistor

FALSE

Connection type auxiliary circuit

Screw connection

Lamp type

LED

Rated voltage Ue at AC 50 Hz

24 Volt

Lamp holder

Other

With integrated diode

TRUE

Transformer integrated

FALSE

Colour light source

White

Rated voltage Ue at DC

24 Volt

Voltage type for actuating

AC/DC

Rated voltage Ue at AC 60 Hz

24 Volt
