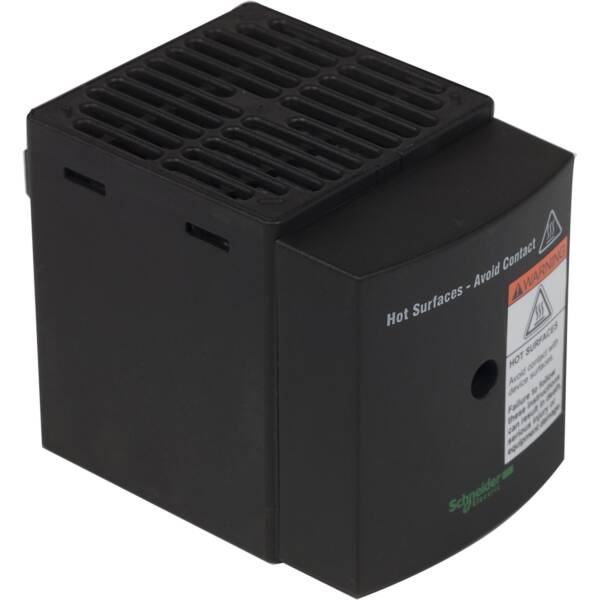

"Resistance heater with fan 177W, 230 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product has extruded aluminium body and plastic cover" "Fixing by clips in vertical operating position" The product width is 65mm, height is 75mm and depth is 90mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit The 2 screw terminals 2,5 mm² are used for electrical connection Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with VDE and UL certification Conforms class II electrical insulation class "This product is qualified as a green premium, with minimal use of hazardous substances"

Brand

Schneider Electric

Range

ClimaSys CR

Part No

NSYCR170W230VVC

Weight (kg)

0.36 kg

Type

ClimaSys CR

Width

65

Continuous heating power at 10 °C

177

Voltage type

AC

With room temperature controller

FALSE

Operating voltage AC 50 Hz

230 Volt

Depth

90

Operating voltage AC 60 Hz

230 Volt

With fan

TRUE

Height

75

Degree of protection (IP)

IP20

Degree of protection (NEMA)

1

Rated power

177
