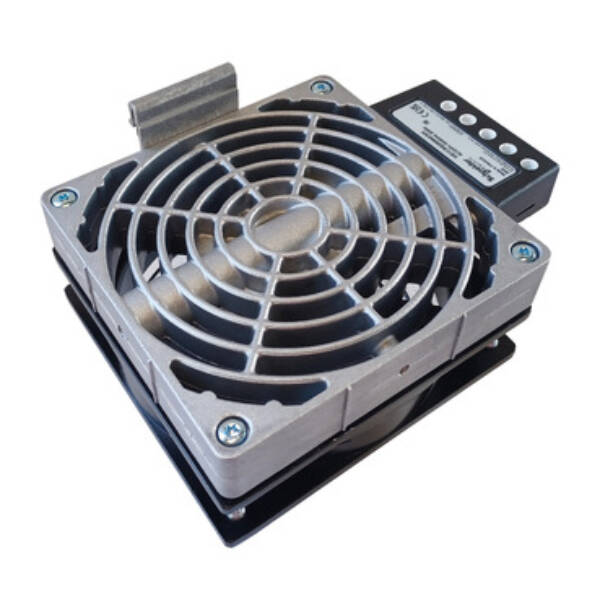

ClimaSys heating resistance 200W, 230V aluminium slim - Schneider Electric - NSYCRS200W230V
ClimaSys heating resistance 200W, 230V aluminium slim - Schneider Electric - NSYCRS200W230V

NSYCRS200W230V

ClimaSys heating resistance 200W, 230V aluminium slim - Schneider Electric - NSYCRS200W230V

Enclosures

List Price £321.76 +VAT

Our Price £241.32 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"Resistance heater with fan 200W, 230 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product has extruded aluminium body" "Fixing by clips in vertical operating position" The product width is 80mm, height is 140mm and depth is 20mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with UL and VDE certification "This product is qualified as a green premium, with minimal use of hazardous substances"
Brand
Schneider Electric
Range
ClimaSys CR
Part No
NSYCRS200W230V
Weight (kg)
0.92 kg
Type
ClimaSys CR
Width
80
Continuous heating power at 10 °C
200
Voltage type
AC
Operating voltage at AC 50 Hz
230 V
With room temperature controller
FALSE
Depth
20
Operating voltage at AC 60 Hz
230 V
With fan
TRUE
Height
140
Degree of protection (IP)
IP20
Degree of protection (NEMA)
1
Rated power
200

Datasheet for NSYCRS200W230V - ClimaSys heating resistance 200W, 230V aluminium slim - Schneider Electric - NSYCRS200W230V
