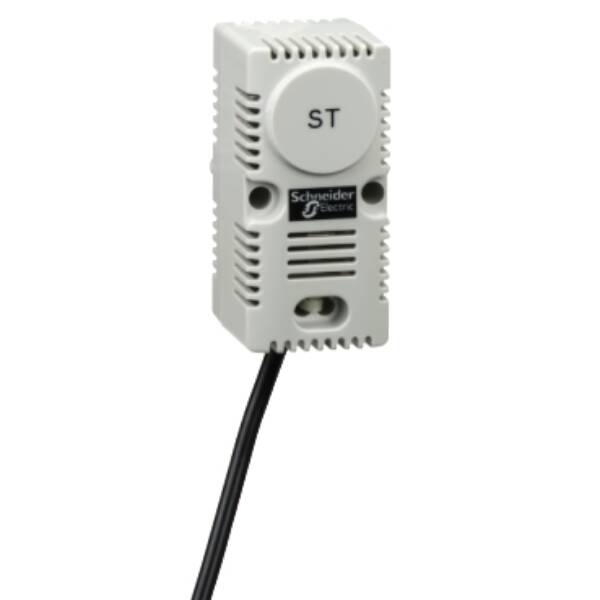

Climasys CC - temperature sensor - temperature range -30…+80°C - cord=3m - Schneider Electric - NSYCCASTE

Climasys CC - temperature sensor - temperature range -30…+80°C - cord=3m - Schneider Electric - NSYCCASTE

NSYCCASTE

Climasys CC - temperature sensor - temperature range -30…+80°C - cord=3m - Schneider Electric - NSYCCASTE

Enclosures

~~List Price £32.41 +VAT~~

Our Price £24.31 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Climasys CC - NTC temperature sensor - temperature range -40 to 150 °C - cord=3m Thermostat installation tips : The thermostat should be installed at the top of the enclosure (the hottest place). See the various operating modes of each thermostat to choose the one meeting your needs. Hygrostat installation tips: The hygrostat should be installed at the bottom of the enclosure. 60% RH is the optimal value in the enclosure.

Brand: Schneider Electric
Range: ClimaSys CC
Part No: NSYCCASTE
Weight (kg): 0.13 kg
Type: ClimaSys CC
Error registration possible: FALSE
Average temperature measuring: FALSE
Supporting protocol for MP (multi point): FALSE
Suitable for duct mounting: FALSE
Suitable for ceiling mounting: TRUE
Material element: Other
Fixed cable to sensor: TRUE
Number of measuring points: 1
Standby push button: FALSE
Measurement of relative air humidity: FALSE
Ambient temperature: -40…150 Degrees celsius
Wireless: FALSE
Measurement of VOC: FALSE
Scope of application: Other
Suitable for liquids: FALSE
Active temperature measurement: TRUE
Diameter sensor element: 7
Compatible with Apple HomeKit: FALSE
Temperature measuring range: -40…80 Degrees celsius
Compatible with Google Assistant: FALSE
Compatible with Amazon Alexa: FALSE
Housing height: 60
Housing depth: 43
Housing width: 33
Measurement of CO2: FALSE
Measurement of dewpoint: FALSE
With display: FALSE
Cable length: 3
Suitable for tube mounting: FALSE
Sensor element inside housing: FALSE
Type of electric connection: Screw connection
NFC (Near Field Communication): FALSE
Tolerance: 2
With housing: TRUE
IFTTT support available: FALSE
Wi-Fi-compatible: FALSE
Suitable for gases: FALSE
Housing colour: Grey
Supporting protocol for KNX: FALSE
Degree of protection (IP): IP67
Enthalpy measurement: FALSE
Offset setting possible: FALSE
Potentiometer with adjustment knob: FALSE
Particulate matter measurement (PM): FALSE
Sensor type: NTC, 10K
Supporting protocol for BACnet: FALSE
Measurement of absolute air humidity: FALSE
LoRa technology: FALSE
Suitable for air: TRUE
Cover attachment: Screwed
Explosion-proof: FALSE
Supporting protocol for Modbus: FALSE
UV resistant: FALSE
Bluetooth: FALSE
Suitable for wall mounting: TRUE
With mounting material: TRUE
Technology: Other
Sensor length: 25.8
Number of output signals: 1

Datasheet for NSYCCASTE - Climasys CC - temperature sensor - temperature range -30…+80°C - cord=3m - Schneider Electric - NSYCCASTE

Download
