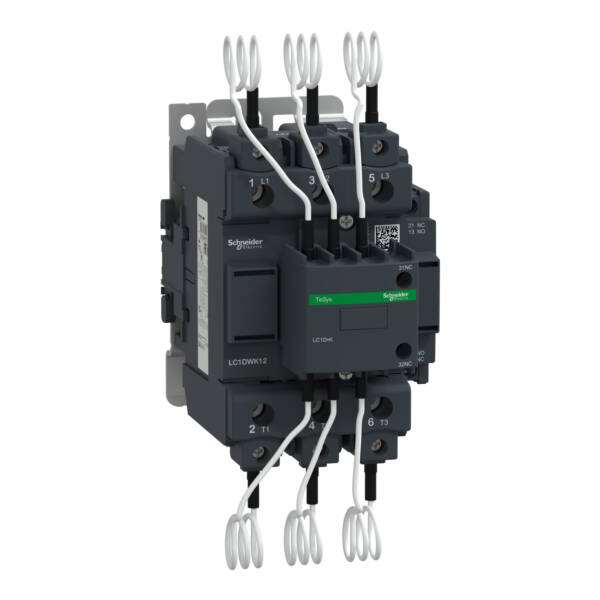

Capacitor contactor, TeSys D, 63 kVAR at 400 V/50 Hz, coil 415 V AC 50/60 Hz - Schneider Electric - LC1DWK12N7

Capacitor contactor, TeSys D, 63 kVAR at 400 V/50 Hz, coil 415 V AC 50/60 Hz - Schneider Electric - LC1DWK12N7

LC1DWK12N7

Capacitor contactor, TeSys D, 63 kVAR at 400 V/50 Hz, coil 415 V AC 50/60 Hz - Schneider Electric - LC1DWK12N7

Control

~~List Price £421.20 +VAT~~

Our Price £315.90 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). For operating rates until 100 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1DWK12N7
Weight (kg): 1.73 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 85
Rated control supply voltage AC 50 Hz: 415 Volt
Rated control supply voltage AC 60 Hz: 415 Volt
Rated blind power at 400 V, 60 Hz: 63
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally closed contact: 2
Number of auxiliary contacts as normally open contact: 1
Operating voltage AC 50 Hz: 440 Volt
Depth: 154
Operating voltage AC 60 Hz: 440 Volt
Height: 180
Voltage type for actuating: AC
Rated blind power at 400 V, 50 Hz: 63

Datasheet for LC1DWK12N7 - Capacitor contactor, TeSys D, 63 kVAR at 400 V/50 Hz, coil 415 V AC 50/60 Hz - Schneider Electric - LC1DWK12N7

Download
